Search › Model › M35
M35

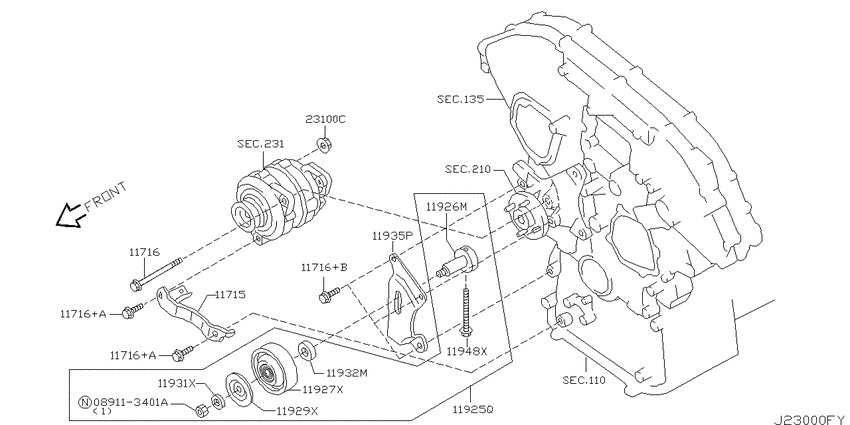

Alternator fitting (2004-08-01 ~ ; VQ25DD +VQ35DE) 9
| # | OEM | Part name |
|---|---|---|
| 11715 | 11715-AL800 | Bar-Adjusting, Alternator |
| 11716 | 11916-0W003 | Bolt |
| 11716 | 11916-0W00B | Bolt |
| 11716 | 11916-4W001 | Bolt |
| 11925 | 11925-AL500 | Pulley Assy-Idler |
| 11926 | 11928-AL500 | Shaft-Idler Pulley |
| 11931 | 11931-AL500 | Specer-Idler Pulley |
| 11932 | 11932-AL500 | Collar-Idler Pulley |
| 11948 | 11948-AL500 | Bolt-Adjust, Idler Pulley |
| OEM | Part name | Category |
|---|---|---|
| 11715-AL800 | Bar-Adjusting, Alternator | Alternator fitting (2004-08-01 ~ ; VQ25DD +VQ35DE) |
| 11916-0W003 | Bolt | Alternator fitting (2004-08-01 ~ ; VQ25DD +VQ35DE) |
| 11916-0W00B | Bolt | Alternator fitting (2004-08-01 ~ ; VQ25DD +VQ35DE) |
| 11916-4W001 | Bolt | Alternator fitting (2004-08-01 ~ ; VQ25DD +VQ35DE) |
| 11925-AL500 | Pulley Assy-Idler | Alternator fitting (2004-08-01 ~ ; VQ25DD +VQ35DE) |
| 11928-AL500 | Shaft-Idler Pulley | Alternator fitting (2004-08-01 ~ ; VQ25DD +VQ35DE) |
| 11931-AL500 | Specer-Idler Pulley | Alternator fitting (2004-08-01 ~ ; VQ25DD +VQ35DE) |
| 11932-AL500 | Collar-Idler Pulley | Alternator fitting (2004-08-01 ~ ; VQ25DD +VQ35DE) |
| 11948-AL500 | Bolt-Adjust, Idler Pulley | Alternator fitting (2004-08-01 ~ ; VQ25DD +VQ35DE) |
