M30

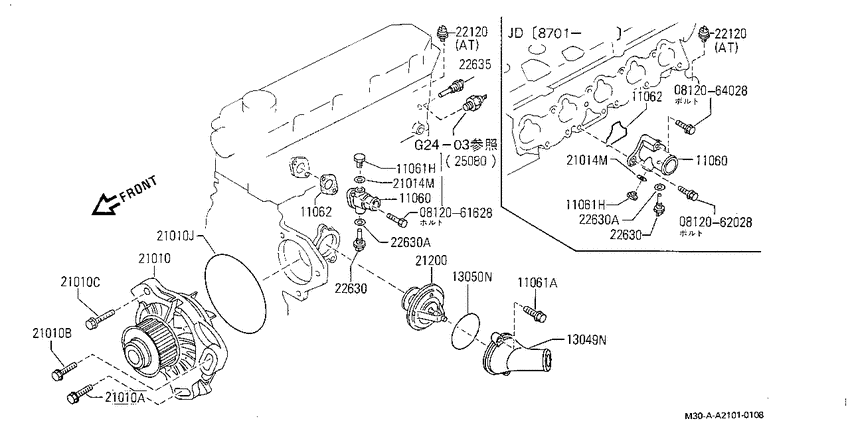

water pump & ｻ-ﾓｽﾀﾂﾄ (1987-01-01 ~ ; J+JD) 10
| # | OEM | Part name |
|---|---|---|
| 11060 | 11060-Y9000 | Outlet-Water |
| 11062 | 11062-Y9000 | Gasket-Water Outlet |
| 13049 | 13049-V4301 | Inlet-Water |
| 13050 | 13050-V4300 | Gasket-Water Inlet |
| 21010 | 21010-Y9010 | Pump Assy-Water |
| 21010 | 21014-V4300 | Seal-O Ring |
| 21200 | 21200-V4301 | Thermostat Assy |
| 22120 | 22120-Y9060 | Engine Coolant Temperature Switch |
| 22630 | 22630-Y9000 | Engine Coolant Temperature Sensor |
| 812062028 | 08120-62028 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08120-62028 | Bolt-hexagon | water pump & ｻ-ﾓｽﾀﾂﾄ (1987-01-01 ~ ; J+JD) |
| 11060-Y9000 | Outlet-Water | water pump & ｻ-ﾓｽﾀﾂﾄ (1987-01-01 ~ ; J+JD) |
| 11062-Y9000 | Gasket-Water Outlet | water pump & ｻ-ﾓｽﾀﾂﾄ (1987-01-01 ~ ; J+JD) |
| 13049-V4301 | Inlet-Water | water pump & ｻ-ﾓｽﾀﾂﾄ (1987-01-01 ~ ; J+JD) |
| 13050-V4300 | Gasket-Water Inlet | water pump & ｻ-ﾓｽﾀﾂﾄ (1987-01-01 ~ ; J+JD) |
| 21010-Y9010 | Pump Assy-Water | water pump & ｻ-ﾓｽﾀﾂﾄ (1987-01-01 ~ ; J+JD) |
| 21014-V4300 | Seal-O Ring | water pump & ｻ-ﾓｽﾀﾂﾄ (1987-01-01 ~ ; J+JD) |
| 21200-V4301 | Thermostat Assy | water pump & ｻ-ﾓｽﾀﾂﾄ (1987-01-01 ~ ; J+JD) |
| 22120-Y9060 | Engine Coolant Temperature Switch | water pump & ｻ-ﾓｽﾀﾂﾄ (1987-01-01 ~ ; J+JD) |
| 22630-Y9000 | Engine Coolant Temperature Sensor | water pump & ｻ-ﾓｽﾀﾂﾄ (1987-01-01 ~ ; J+JD) |
