Search › Model › M30
M30

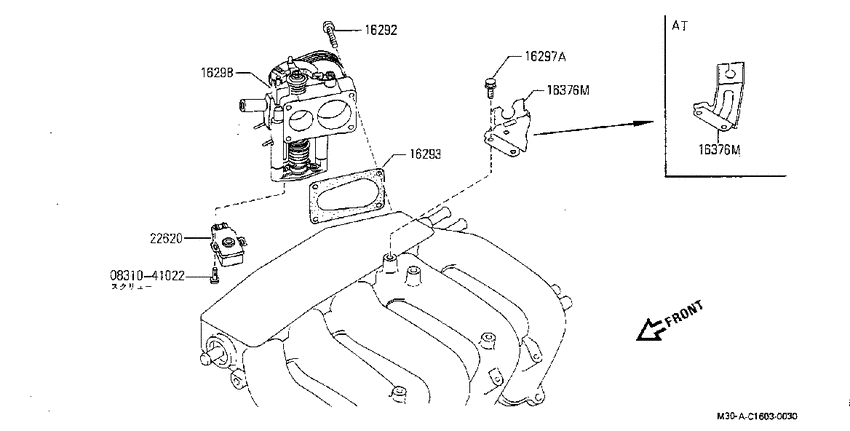

Throttle chamber & iaa unit (1987-01-01 ~ ; JD) 7
| # | OEM | Part name |
|---|---|---|
| 16293 | 16175-V4300 | Gasket-Throttle Chamber |
| 16298 | 16118-Y9010 | Throttle Body |
| 16298 | 16118-Y9000 | Throttle Body |
| 16376 | 16165-Y9010 | Bracket-Accelerator Cable |
| 16376 | 16165-Y9000 | Bracket-Accelerator Cable |
| 22620 | 22620-Y9000 | Throttle Position Switch |
| 831041022 | 08310-41022 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08310-41022 | スクリユ-,マシン | Throttle chamber & iaa unit (1987-01-01 ~ ; JD) |
| 16118-Y9000 | Throttle Body | Throttle chamber & iaa unit (1987-01-01 ~ ; JD) |
| 16118-Y9010 | Throttle Body | Throttle chamber & iaa unit (1987-01-01 ~ ; JD) |
| 16165-Y9000 | Bracket-Accelerator Cable | Throttle chamber & iaa unit (1987-01-01 ~ ; JD) |
| 16165-Y9010 | Bracket-Accelerator Cable | Throttle chamber & iaa unit (1987-01-01 ~ ; JD) |
| 16175-V4300 | Gasket-Throttle Chamber | Throttle chamber & iaa unit (1987-01-01 ~ ; JD) |
| 22620-Y9000 | Throttle Position Switch | Throttle chamber & iaa unit (1987-01-01 ~ ; JD) |
