Search › Model › M30
M30

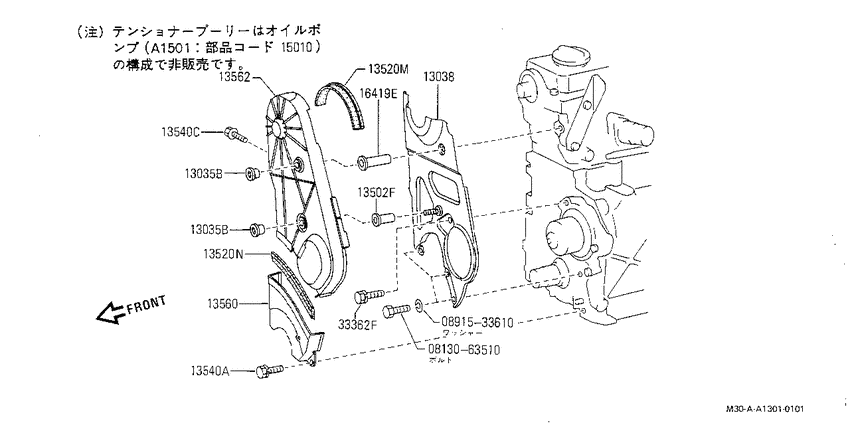

front cover (1987-01-01 ~ ; JD) 9
| # | OEM | Part name |
|---|---|---|
| 13035 | 13530-V4000 | Nut |
| 13038 | 13570-Y9000 | Cover-Front |
| 13502 | 13527-Y9000 | Spacer |
| 13520 | 13522-V4300 | Gasket-Dust Cover |
| 13520 | 13525-V4300 | Gasket-Front Cover |
| 13560 | 13500-V4300 | Cover Assy-Dust, Lower |
| 13562 | 13561-Y9001 | Cover Assy-Dust, Upper |
| 16419 | 13527-Y9010 | Spacer-Bracket |
| 813063510 | 08130-63510 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08130-63510 | Bolt-hexagon | front cover (1987-01-01 ~ ; JD) |
| 13500-V4300 | Cover Assy-Dust, Lower | front cover (1987-01-01 ~ ; JD) |
| 13522-V4300 | Gasket-Dust Cover | front cover (1987-01-01 ~ ; JD) |
| 13525-V4300 | Gasket-Front Cover | front cover (1987-01-01 ~ ; JD) |
| 13527-Y9000 | Spacer | front cover (1987-01-01 ~ ; JD) |
| 13527-Y9010 | Spacer-Bracket | front cover (1987-01-01 ~ ; JD) |
| 13530-V4000 | Nut | front cover (1987-01-01 ~ ; JD) |
| 13561-Y9001 | Cover Assy-Dust, Upper | front cover (1987-01-01 ~ ; JD) |
| 13570-Y9000 | Cover-Front | front cover (1987-01-01 ~ ; JD) |
