Search › Model › M30
M30

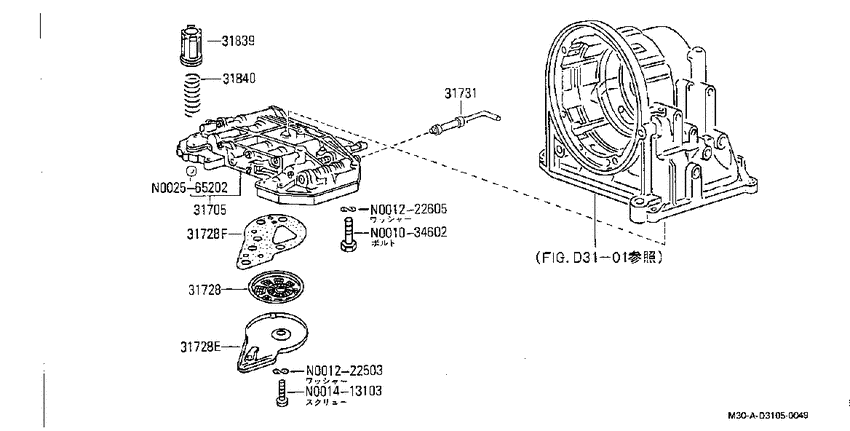

Control valve (atm) (1984-02-01 ~ ; AT) 7
| # | OEM | Part name |
|---|---|---|
| 31705 | 31710-V4810 | Valve Assy-Control |
| 31728 | 31728-V4900 | Strainer Assy-Oil |
| 31728 | 31718-V4900 | Cover-Oil Strainer |
| 31728 | 31797-V4900 | Gasket-Oil Strainer |
| 31731 | 31731-V4901 | Valve-Manual |
| 31839 | 31814-V4900 | Piston-Accumulator Lock Up |
| 31840 | 31812-V4900 | Spring-Accumulator Lock Up |
| OEM | Part name | Category |
|---|---|---|
| 31710-V4810 | Valve Assy-Control | Control valve (atm) (1984-02-01 ~ ; AT) |
| 31718-V4900 | Cover-Oil Strainer | Control valve (atm) (1984-02-01 ~ ; AT) |
| 31728-V4900 | Strainer Assy-Oil | Control valve (atm) (1984-02-01 ~ ; AT) |
| 31731-V4901 | Valve-Manual | Control valve (atm) (1984-02-01 ~ ; AT) |
| 31797-V4900 | Gasket-Oil Strainer | Control valve (atm) (1984-02-01 ~ ; AT) |
| 31812-V4900 | Spring-Accumulator Lock Up | Control valve (atm) (1984-02-01 ~ ; AT) |
| 31814-V4900 | Piston-Accumulator Lock Up | Control valve (atm) (1984-02-01 ~ ; AT) |
