M30

Nissan SANTANA-VOLKSWAGEN · 1984 · 3,009 parts · 160 categories

← Back to categories

3,009 items

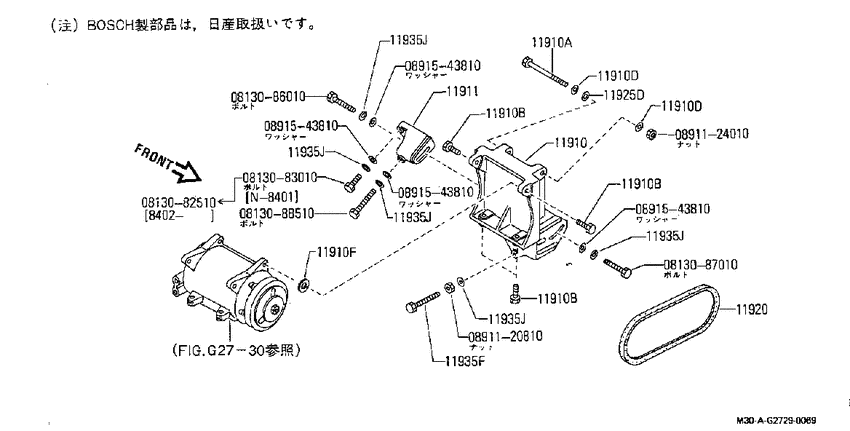

Compressor mounting & fitting (1987-01-01 ~ ; JD) 12

#	OEM	Part name
11910	11910-V4310	Bracket-Compressor
11910	11916-V4312	Bolt
11910	11915-Q4500	Bolt
11911	11910-V4315	Bracket-Compressor
11920	11920-V4310	Belt-Power Steering Oil Pump
11935	11916-V4311	Bolt
813083010	08130-83010	Bolt-hexagon
813086010	08130-86010	Bolt-hexagon
813087010	08130-87010	Bolt-hexagon
813088510	08130-88510	Bolt-hexagon
891120810	08911-20810	Nut
891543810	08915-43810	ワツシヤ-,プレ-ン

OEM	Part name	Category
08130-83010	Bolt-hexagon	Compressor mounting & fitting (1987-01-01 ~ ; JD)
08130-86010	Bolt-hexagon	Compressor mounting & fitting (1987-01-01 ~ ; JD)
08130-87010	Bolt-hexagon	Compressor mounting & fitting (1987-01-01 ~ ; JD)
08130-88510	Bolt-hexagon	Compressor mounting & fitting (1987-01-01 ~ ; JD)
08911-20810	Nut	Compressor mounting & fitting (1987-01-01 ~ ; JD)
08915-43810	ワツシヤ-,プレ-ン	Compressor mounting & fitting (1987-01-01 ~ ; JD)
11910-V4310	Bracket-Compressor	Compressor mounting & fitting (1987-01-01 ~ ; JD)
11910-V4315	Bracket-Compressor	Compressor mounting & fitting (1987-01-01 ~ ; JD)
11915-Q4500	Bolt	Compressor mounting & fitting (1987-01-01 ~ ; JD)
11916-V4311	Bolt	Compressor mounting & fitting (1987-01-01 ~ ; JD)
11916-V4312	Bolt	Compressor mounting & fitting (1987-01-01 ~ ; JD)
11920-V4310	Belt-Power Steering Oil Pump	Compressor mounting & fitting (1987-01-01 ~ ; JD)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 160
Collected: 2026-07-27
