M30

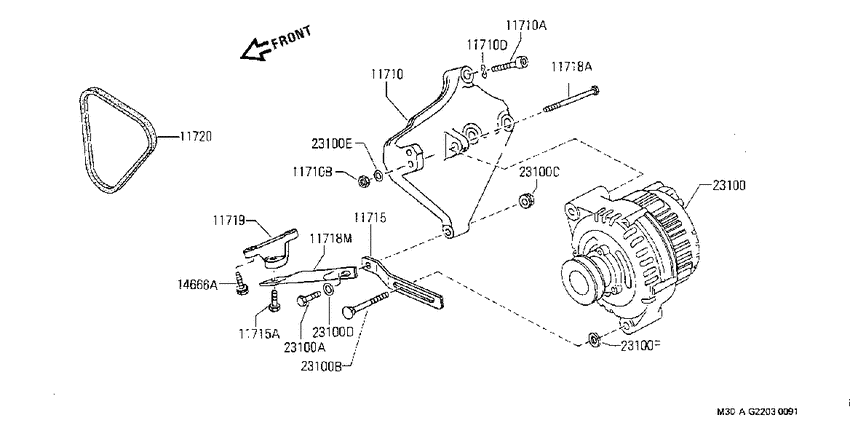

Alternator mounting (1987-01-01 ~ ; JD) 9
| # | OEM | Part name |
|---|---|---|
| 11710 | 11710-V4300 | Bracket-Alternator |
| 11710 | 11918-V4000 | Washer-Lock |
| 11715 | 11715-Y9000 | Bar-Adjusting, Alternator |
| 11718 | 11710-V4302 | Bracket-Alternator Adjust Bolt |
| 11719 | 11710-V4303 | Stopper-Alternator Nut |
| 11720 | 11720-Y9000 | Belt-Fan |
| 23100 | 23100-V4365 | Alternator Assy |
| 23100 | 49582-V4400 | Bolt |
| 23100 | 11917-V4300 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 11710-V4300 | Bracket-Alternator | Alternator mounting (1987-01-01 ~ ; JD) |
| 11710-V4302 | Bracket-Alternator Adjust Bolt | Alternator mounting (1987-01-01 ~ ; JD) |
| 11710-V4303 | Stopper-Alternator Nut | Alternator mounting (1987-01-01 ~ ; JD) |
| 11715-Y9000 | Bar-Adjusting, Alternator | Alternator mounting (1987-01-01 ~ ; JD) |
| 11720-Y9000 | Belt-Fan | Alternator mounting (1987-01-01 ~ ; JD) |
| 11917-V4300 | Nut | Alternator mounting (1987-01-01 ~ ; JD) |
| 11918-V4000 | Washer-Lock | Alternator mounting (1987-01-01 ~ ; JD) |
| 23100-V4365 | Alternator Assy | Alternator mounting (1987-01-01 ~ ; JD) |
| 49582-V4400 | Bolt | Alternator mounting (1987-01-01 ~ ; JD) |
