M30

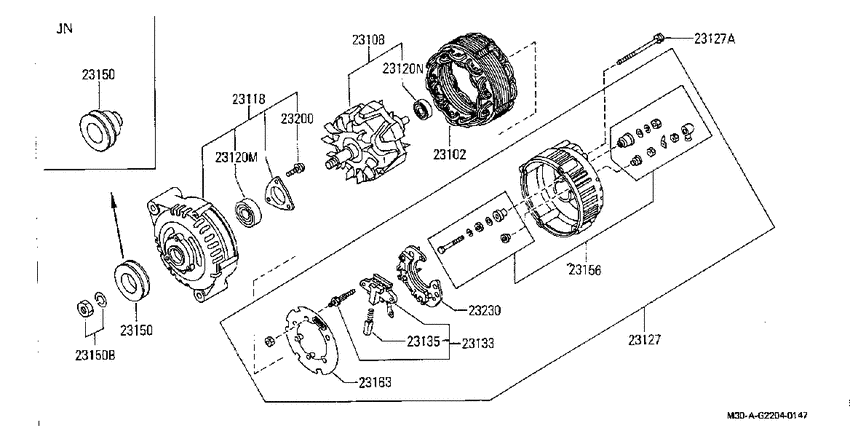

Alternator (1987-01-01 ~ ; JD) 15
| # | OEM | Part name |
|---|---|---|
| 23102 | 23102-V4360 | Stator Assy |
| 23108 | 23108-V4360 | Rotor Assy |
| 23118 | 23118-V4360 | Cover Assy-Front |
| 23120 | 23120-P4500 | Bearing-Ball |
| 23120 | 23120-R2000 | Bearing-Ball |
| 23127 | 23127-V4365 | Cover Assy-Rear |
| 23127 | 23131-02W00 | Bolt-Through |
| 23133 | 23133-V4365 | Holder Assy-Brush |
| 23135 | 23142-20W00 | Brush Assy |
| 23150 | 23150-V4365 | Pulley Assy |
| 23150 | 23153-Q4601 | Nut Assy-Pulley |
| 23156 | 23156-V4360 | Terminal Assy-B |
| 23163 | 23163-V4360 | Guide-Alternator Fan |
| 23200 | 23200-Q4601 | Screw Set |
| 23230 | 23230-V4360 | Diode Assy |
| OEM | Part name | Category |
|---|---|---|
| 23102-V4360 | Stator Assy | Alternator (1987-01-01 ~ ; JD) |
| 23108-V4360 | Rotor Assy | Alternator (1987-01-01 ~ ; JD) |
| 23118-V4360 | Cover Assy-Front | Alternator (1987-01-01 ~ ; JD) |
| 23120-P4500 | Bearing-Ball | Alternator (1987-01-01 ~ ; JD) |
| 23120-R2000 | Bearing-Ball | Alternator (1987-01-01 ~ ; JD) |
| 23127-V4365 | Cover Assy-Rear | Alternator (1987-01-01 ~ ; JD) |
| 23131-02W00 | Bolt-Through | Alternator (1987-01-01 ~ ; JD) |
| 23133-V4365 | Holder Assy-Brush | Alternator (1987-01-01 ~ ; JD) |
| 23142-20W00 | Brush Assy | Alternator (1987-01-01 ~ ; JD) |
| 23150-V4365 | Pulley Assy | Alternator (1987-01-01 ~ ; JD) |
| 23153-Q4601 | Nut Assy-Pulley | Alternator (1987-01-01 ~ ; JD) |
| 23156-V4360 | Terminal Assy-B | Alternator (1987-01-01 ~ ; JD) |
| 23163-V4360 | Guide-Alternator Fan | Alternator (1987-01-01 ~ ; JD) |
| 23200-Q4601 | Screw Set | Alternator (1987-01-01 ~ ; JD) |
| 23230-V4360 | Diode Assy | Alternator (1987-01-01 ~ ; JD) |
