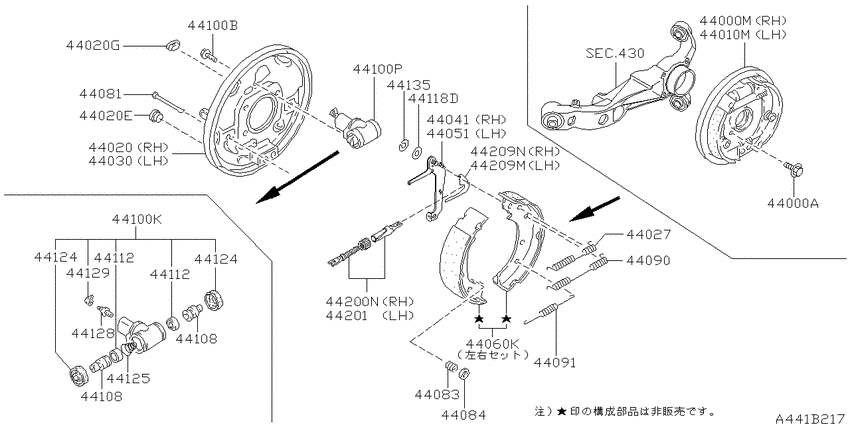

| 44000-WF402 |
Brake Assy-Drum, Rear Rh |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44000-WF412 |
Brake Assy-Drum, Rear Rh |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44005-WF100 |
Bolt |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44010-WF402 |
Brake Assy-Drum, Rear Lh |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44010-WF412 |
Brake Assy-Drum, Rear Lh |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44020-WF400 |
Plate Assy-Back, Rear Brake Rh |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44030-WF400 |
Plate Assy-Back, Rear Brake Lh |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44041-4N000 |
Lever-Toggle, Rh |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44051-4N000 |
Lever-Toggle, Lh |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44060-4N026 |
Shoe Set-Rear Brake |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44081-25Y10 |
Pin-Anti Shoe Rattle |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44084-U9201 |
Retainer-Spring, Anti Shoe Rattle |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44085-01A00 |
Washer-Lock |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44090-0C710 |
Spring-Return, Rear Brake Shoe |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44108-AE000 |
Piston-Cylinder |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44125-AE000 |
Spring |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44128-72B10 |
Screw-Bleeder |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44129-L0700 |
Cap-Bleeder Screw |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44200-0C710 |
Adjuster Assy-Rear Brake, Rh |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44201-0C710 |
Adjuster Assy-Rear Brake, Lh |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44211-0C710 |
Lever Assy-Adjuster, Lh |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44214-0C710 |
Spring-Adjusting, Rear Brake |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
| 44222-M4900 |
Ring-Retaining |
Rear brake (2002-09-01 ~ ; QR20DE.AT.R4) |
