Search › Model › M12
M12

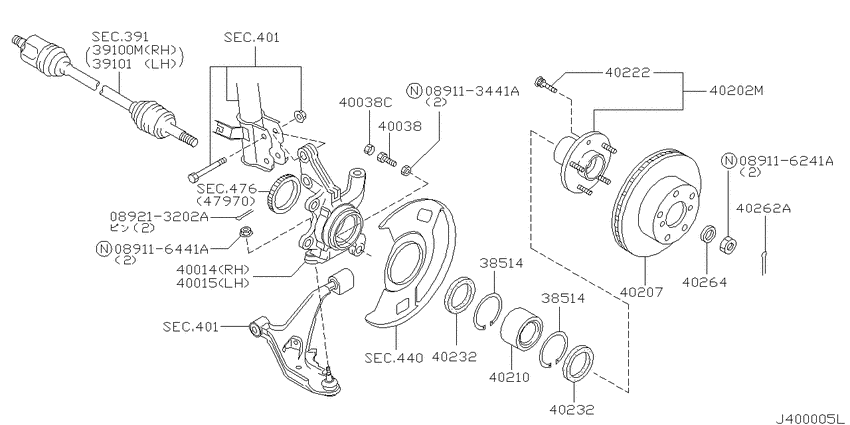

Front axle (2002-09-01 ~ ; QR20DE) 6
| # | OEM | Part name |
|---|---|---|
| 40014 | 40014-WA200 | Spindle-Knuckle, Rh |
| 40015 | 40015-WA200 | Spindle-Knuckle, Lh |
| 40038 | 40038-01E11 | BOLT-STOPPER |
| 40038 | 40038-01E6C | Bolt |
| 40232 | 40232-33P10 | Seal-Grease, Front Hub |
| 89113441 | 08911-3441A | ナツト,ヘクサゴン |
| OEM | Part name | Category |
|---|---|---|
| 08911-3441A | ナツト,ヘクサゴン | Front axle (2002-09-01 ~ ; QR20DE) |
| 40014-WA200 | Spindle-Knuckle, Rh | Front axle (2002-09-01 ~ ; QR20DE) |
| 40015-WA200 | Spindle-Knuckle, Lh | Front axle (2002-09-01 ~ ; QR20DE) |
| 40038-01E11 | BOLT-STOPPER | Front axle (2002-09-01 ~ ; QR20DE) |
| 40038-01E6C | Bolt | Front axle (2002-09-01 ~ ; QR20DE) |
| 40232-33P10 | Seal-Grease, Front Hub | Front axle (2002-09-01 ~ ; QR20DE) |
