M12

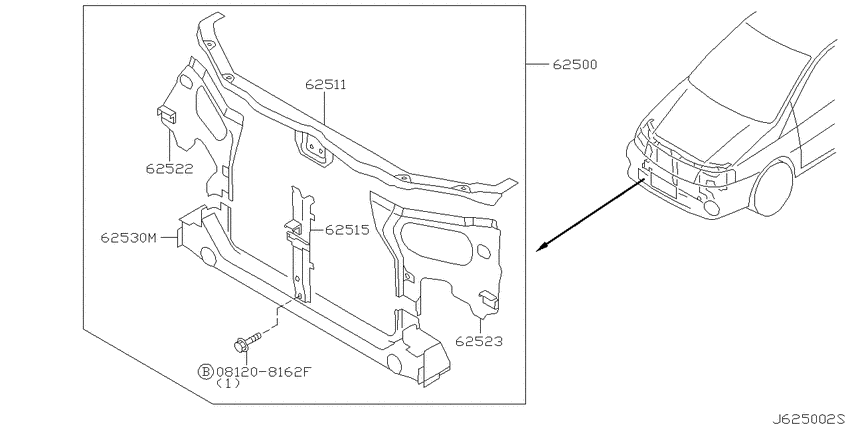

Front apron & radiator core support (2002-09-01 ~ ; W) 4
| # | OEM | Part name |
|---|---|---|
| 62500 | 62500-WF900 | Support Assy-Radiator Core |
| 62522 | 62520-WF700 | Support-Radiator Core, Side Rh |
| 62523 | 62521-WF900 | Support-Radiator Core, Side Lh |
| 81208162 | 08120-8162F | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08120-8162F | Bolt-hexagon | Front apron & radiator core support (2002-09-01 ~ ; W) |
| 62500-WF900 | Support Assy-Radiator Core | Front apron & radiator core support (2002-09-01 ~ ; W) |
| 62520-WF700 | Support-Radiator Core, Side Rh | Front apron & radiator core support (2002-09-01 ~ ; W) |
| 62521-WF900 | Support-Radiator Core, Side Lh | Front apron & radiator core support (2002-09-01 ~ ; W) |
