M12

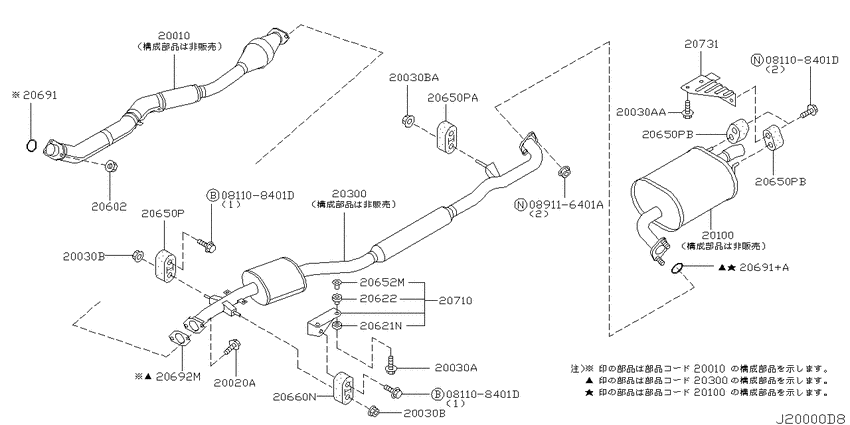

Exhaust tube & muffler (2002-09-01 ~ ; QR20DE) 7
| # | OEM | Part name |
|---|---|---|
| 20030 | 01121-01333 | BOLT |
| 20100 | 20100-WF125 | Muffler Assy-Exhaust Main |
| 20602 | 20602-41G00 | Nut-Fix, Exhaust Tube |
| 20650 | 20650-70A10 | Mounting Assy-Exhaust, Rubber |
| 20652 | 20652-60R00 | Collar-Exhaust Mounting |
| 20660 | 20660-01E00 | INSULATOR ASSY-EXHAUST MOUNTING |
| 20710 | 20710-WF100 | Mounting Assy-Exhaust, Rubber |
| OEM | Part name | Category |
|---|---|---|
| 01121-01333 | BOLT | Exhaust tube & muffler (2002-09-01 ~ ; QR20DE) |
| 20100-WF125 | Muffler Assy-Exhaust Main | Exhaust tube & muffler (2002-09-01 ~ ; QR20DE) |
| 20602-41G00 | Nut-Fix, Exhaust Tube | Exhaust tube & muffler (2002-09-01 ~ ; QR20DE) |
| 20650-70A10 | Mounting Assy-Exhaust, Rubber | Exhaust tube & muffler (2002-09-01 ~ ; QR20DE) |
| 20652-60R00 | Collar-Exhaust Mounting | Exhaust tube & muffler (2002-09-01 ~ ; QR20DE) |
| 20660-01E00 | INSULATOR ASSY-EXHAUST MOUNTING | Exhaust tube & muffler (2002-09-01 ~ ; QR20DE) |
| 20710-WF100 | Mounting Assy-Exhaust, Rubber | Exhaust tube & muffler (2002-09-01 ~ ; QR20DE) |
