M12

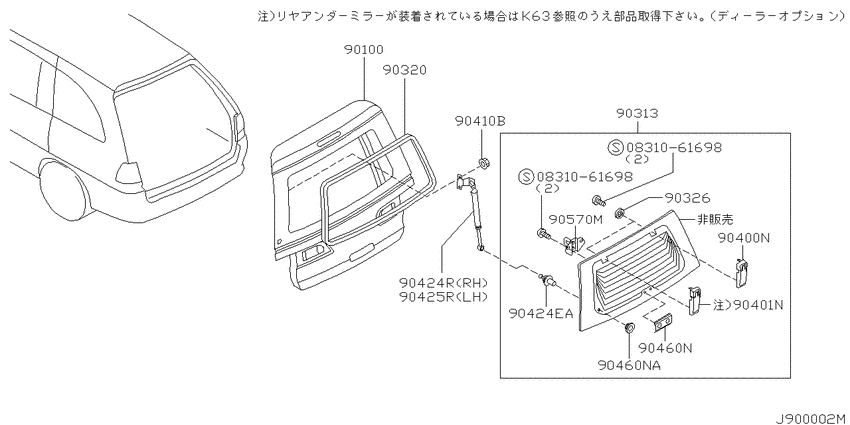

Back door panel & fitting (2002-09-01 ~ ; ガラス; W) 8
| # | OEM | Part name |
|---|---|---|
| 90313 | 90300-WF700 | Glass-Back Door Window |
| 90326 | 90326-WA000 | Escutcheon-Hinge, Back Door Hatch |
| 90400 | 90320-WF100 | Hinge-Glass Hatch, Rh |
| 90401 | 90321-WF100 | Hinge-Glass Hatch, Lh |
| 90424 | 90456-WF710 | Stud-Ball, Back Door Stay |
| 90424 | 90460-WF701 | Stay-Back Door Window, Rh |
| 90425 | 90461-WF701 | Stay-Back Door Window, Lh |
| 90570 | 90332-WF100 | Striker Assy-Back Door Hatch |
| OEM | Part name | Category |
|---|---|---|
| 90300-WF700 | Glass-Back Door Window | Back door panel & fitting (2002-09-01 ~ ; ガラス; W) |
| 90320-WF100 | Hinge-Glass Hatch, Rh | Back door panel & fitting (2002-09-01 ~ ; ガラス; W) |
| 90321-WF100 | Hinge-Glass Hatch, Lh | Back door panel & fitting (2002-09-01 ~ ; ガラス; W) |
| 90326-WA000 | Escutcheon-Hinge, Back Door Hatch | Back door panel & fitting (2002-09-01 ~ ; ガラス; W) |
| 90332-WF100 | Striker Assy-Back Door Hatch | Back door panel & fitting (2002-09-01 ~ ; ガラス; W) |
| 90456-WF710 | Stud-Ball, Back Door Stay | Back door panel & fitting (2002-09-01 ~ ; ガラス; W) |
| 90460-WF701 | Stay-Back Door Window, Rh | Back door panel & fitting (2002-09-01 ~ ; ガラス; W) |
| 90461-WF701 | Stay-Back Door Window, Lh | Back door panel & fitting (2002-09-01 ~ ; ガラス; W) |
