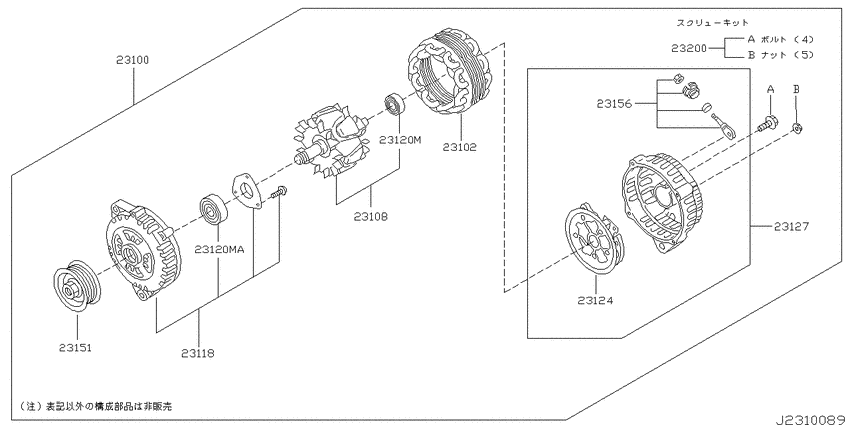

| 23100-AU400 |
Alternator Assy |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23102-AU401 |
Stator Assy |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23108-9Y500 |
Rotor Assy |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23108-AU400 |
Rotor Assy |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23108-AU40A |
Rotor Assy |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23118-AU400 |
Cover Assy-Front |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23120-0M000 |
Bearing-Ball |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23120-0M005 |
Bearing-Ball |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23124-AU400 |
Rectifier Assy |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23124-AU401 |
Rectifier Assy |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23127-AU400 |
Cover Assy-Rear |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23127-AU401 |
Cover Assy-Rear |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23151-6N200 |
Pulley-Alternator |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23156-65F00 |
Terminal Assy-B |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
| 23200-0M000 |
Screw Set |
Alternator (2002-09-01 ~ ; 日立; QR20DE) |
