M111A

Toyota DUET · 2000 · 3,078 parts · 171 categories

← Back to categories

3,078 items

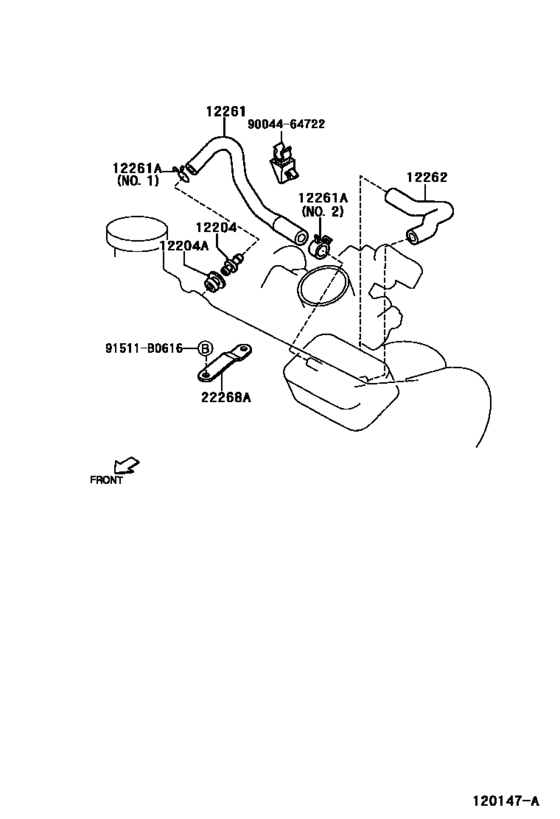

Ventilation Hose ([05.2000 - ] (0005- )K3VE) 12

#	OEM	Part name
12204	12204-97401	Valve Sub-Assy, Ventilation
12204	90480-18001	Grommet(For Ventilation System)
12261	12261-97404	Hose, Ventilation
12261	12261-97402	Hose, Ventilation
12261	90467-14001	Clip Or Clamp(For Ventilation Hose)
12261	90466-T0026	Clip Or Clamp(For Ventilation Hose)
12261	90467-18003	Clip Or Clamp(For Ventilation Hose)
12262	12262-97401	Hose, Ventilation, No.2
22268	22268-97401	Bracket, Throttle Body, No.2
91511	91511-B0616	BOLT, FLANGE
91511	90080-10164	BOLT, FLANGE
9004464722	90044-64722	New Genuine Part

OEM	Part name	Category
12204-97401	Valve Sub-Assy, Ventilation	Ventilation Hose ([05.2000 - ] (0005- )K3VE)
12261-97402	Hose, Ventilation	Ventilation Hose ([05.2000 - ] (0005- )K3VE)
12261-97404	Hose, Ventilation	Ventilation Hose ([05.2000 - ] (0005- )K3VE)
12262-97401	Hose, Ventilation, No.2	Ventilation Hose ([05.2000 - ] (0005- )K3VE)
22268-97401	Bracket, Throttle Body, No.2	Ventilation Hose ([05.2000 - ] (0005- )K3VE)
90044-64722	New Genuine Part	Ventilation Hose ([05.2000 - ] (0005- )K3VE)
90080-10164	BOLT, FLANGE	Ventilation Hose ([05.2000 - ] (0005- )K3VE)
90466-T0026	Clip Or Clamp(For Ventilation Hose)	Ventilation Hose ([05.2000 - ] (0005- )K3VE)
90467-14001	Clip Or Clamp(For Ventilation Hose)	Ventilation Hose ([05.2000 - ] (0005- )K3VE)
90467-18003	Clip Or Clamp(For Ventilation Hose)	Ventilation Hose ([05.2000 - ] (0005- )K3VE)
90480-18001	Grommet(For Ventilation System)	Ventilation Hose ([05.2000 - ] (0005- )K3VE)
91511-B0616	BOLT, FLANGE	Ventilation Hose ([05.2000 - ] (0005- )K3VE)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 171
Collected: 2026-08-03
