Search › Model › M111A

M111A

Toyota DUET · 2000 · 3,078 parts · 171 categories

3,078 items

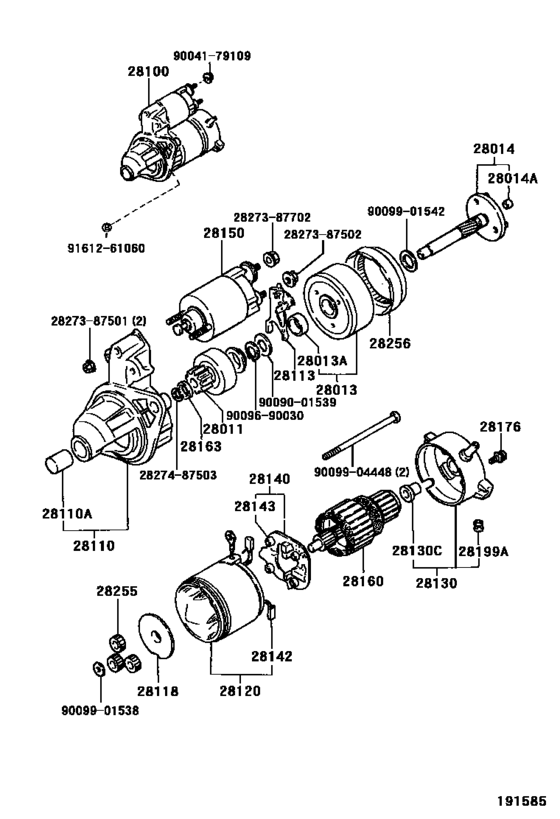

Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE) 42

#	OEM	Part name
28011	28011-87101	Clutch Sub-Assy, Starter
28011	28011-87509	Clutch Sub-Assy, Starter
28013	28126-87201	Bearing, Starter Center & Shock Absorber, No.1
28013	90099-10181	Bearing, Starter Center & Shock Absorber, No.2
28014	28209-87201	Shaft Sub-Assy, Planet Carrier
28014	90099-10180	Bush Or Bearing, Planet Carrier Shaft
28100	28100-97401	Starter Assy
28110	28110-97208	Housing Assy, Starter Drive
28110	28110-97209	Housing Assy, Starter Drive
28110	28277-87201	Bearing(For Starter Housing)
28113	28113-87204	Lever, Starter Pinion Drive
28113	28113-87503	Lever, Starter Pinion Drive
28118	28118-87201	Plate(For Starter Yoke)
28120	28120-87507	Yoke Assy, Starter
28120	28120-97201	Yoke Assy, Starter
28130	28133-97205	Frame Assy, Starter Commutator End
28130	28133-97501	Frame Assy, Starter Commutator End
28130	90099-10183	Bearing, Starter Flange
28140	28140-87202	Holder Assy, Starter Brush
28140	28149-87501	Holder Assy, Starter Brush
28143	28143-10020	Spring, Starter Brush
28143	28143-87202	Spring, Starter Brush
28150	28150-87208	Switch Assy, Magnet Starter
28160	28160-10020	Armature Assy, Starter
28160	28160-87208	Armature Assy, Starter
28163	28142-87505	Nut Or Collar, Pinion Stop, Starter
28163	28163-87202	Nut Or Collar, Pinion Stop, Starter
28176	28176-87201	Screw, Starter
28199	28199-87505	Protector, Dust Starter
28255	28185-87201	Gear, Planet
28256	28184-87201	Gear, Starter Internal
2827387501	28273-87501	New Genuine Part
2827387502	28273-87502	New Genuine Part
2827387702	28273-87702	New Genuine Part
2827487503	28274-87503	Ring, Snap(For Starter Pinion Stop Nut)
9004179109	90041-79109	New Genuine Part
9009001539	90090-01539	New Genuine Part
9009690030	90096-90030	Ring, Snap, Starter Clutch Housing Disc
9009901538	90099-01538	New Genuine Part
9009901542	90099-01542	New Genuine Part
9009904448	90099-04448	Bolt, Starter
9161261060	91612-61060	Bolt(for Clutch Release Cylinder Setting)

OEM	Part name	Category
28011-87101	Clutch Sub-Assy, Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28011-87509	Clutch Sub-Assy, Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28100-97401	Starter Assy	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28110-97208	Housing Assy, Starter Drive	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28110-97209	Housing Assy, Starter Drive	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28113-87204	Lever, Starter Pinion Drive	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28113-87503	Lever, Starter Pinion Drive	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28118-87201	Plate(For Starter Yoke)	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28120-87507	Yoke Assy, Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28120-97201	Yoke Assy, Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28126-87201	Bearing, Starter Center & Shock Absorber, No.1	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28133-97205	Frame Assy, Starter Commutator End	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28133-97501	Frame Assy, Starter Commutator End	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28140-87202	Holder Assy, Starter Brush	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28142-87505	Nut Or Collar, Pinion Stop, Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28143-10020	Spring, Starter Brush	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28143-87202	Spring, Starter Brush	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28149-87501	Holder Assy, Starter Brush	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28150-87208	Switch Assy, Magnet Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28160-10020	Armature Assy, Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28160-87208	Armature Assy, Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28163-87202	Nut Or Collar, Pinion Stop, Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28176-87201	Screw, Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28184-87201	Gear, Starter Internal	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28185-87201	Gear, Planet	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28199-87505	Protector, Dust Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28209-87201	Shaft Sub-Assy, Planet Carrier	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28273-87501	New Genuine Part	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28273-87502	New Genuine Part	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28273-87702	New Genuine Part	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28274-87503	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
28277-87201	Bearing(For Starter Housing)	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
90041-79109	New Genuine Part	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
90090-01539	New Genuine Part	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
90096-90030	Ring, Snap, Starter Clutch Housing Disc	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
90099-01538	New Genuine Part	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
90099-01542	New Genuine Part	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
90099-04448	Bolt, Starter	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
90099-10180	Bush Or Bearing, Planet Carrier Shaft	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
90099-10181	Bearing, Starter Center & Shock Absorber, No.2	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
90099-10183	Bearing, Starter Flange	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)
91612-61060	Bolt(for Clutch Release Cylinder Setting)	Starter ([07.2001 - ] 12V 1.0KW (0107- )K3VE)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 171
Collected: 2026-08-03
