M11

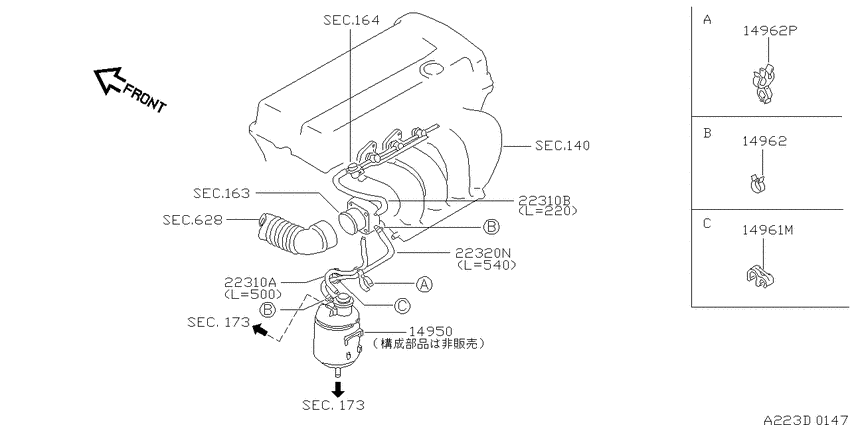

Vacuum piping (1995-08-01 ~ ; SR20DE) 7
| # | OEM | Part name |
|---|---|---|
| 14950 | 14950-0E000 | CANISTER ASSY-EVAPORATION |
| 14961 | 01552-00841 | CLIP-HOSE |
| 14962 | 16439-N2100 | Clamp-Hose |
| 14962 | 24220-53J00 | Clamp-Hose, B |
| 22310 | 02187-25001 | HOSE-VACUUM CONTROL |
| 22310 | 02187-32203 | HOSE-VACUUM CONTROL |
| 22320 | 02187-35423 | HOSE-VACUUM CONTROL |
| OEM | Part name | Category |
|---|---|---|
| 01552-00841 | CLIP-HOSE | Vacuum piping (1995-08-01 ~ ; SR20DE) |
| 02187-25001 | HOSE-VACUUM CONTROL | Vacuum piping (1995-08-01 ~ ; SR20DE) |
| 02187-32203 | HOSE-VACUUM CONTROL | Vacuum piping (1995-08-01 ~ ; SR20DE) |
| 02187-35423 | HOSE-VACUUM CONTROL | Vacuum piping (1995-08-01 ~ ; SR20DE) |
| 14950-0E000 | CANISTER ASSY-EVAPORATION | Vacuum piping (1995-08-01 ~ ; SR20DE) |
| 16439-N2100 | Clamp-Hose | Vacuum piping (1995-08-01 ~ ; SR20DE) |
| 24220-53J00 | Clamp-Hose, B | Vacuum piping (1995-08-01 ~ ; SR20DE) |
