Search › Model › M11
M11

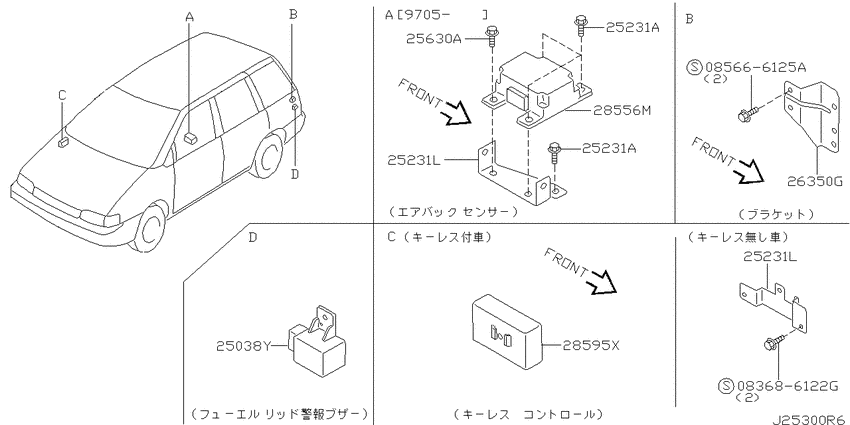

Electrical unit (1997-05-01 ~ ; ボデ-(ソノ2); S) 8
| # | OEM | Part name |
|---|---|---|
| 25038 | 26350-89916 | Buzzer Assy |
| 25231 | 01141-00321 | BOLT |
| 25231 | 24239-50R10 | Bracket |
| 25231 | 74386-WF010 | Bracket |
| 26350 | 24239-50R05 | Bracket |
| 28556 | 28556-WF025 | Sensor & Diagnosis-Air Bag |
| 28595 | 28595-50R00 | Controler Assy-Key Less |
| 28595 | 28596-5L300 | Controler Assy-Key Less |
| OEM | Part name | Category |
|---|---|---|
| 01141-00321 | BOLT | Electrical unit (1997-05-01 ~ ; ボデ-(ソノ2); S) |
| 24239-50R05 | Bracket | Electrical unit (1997-05-01 ~ ; ボデ-(ソノ2); S) |
| 24239-50R10 | Bracket | Electrical unit (1997-05-01 ~ ; ボデ-(ソノ2); S) |
| 26350-89916 | Buzzer Assy | Electrical unit (1997-05-01 ~ ; ボデ-(ソノ2); S) |
| 28556-WF025 | Sensor & Diagnosis-Air Bag | Electrical unit (1997-05-01 ~ ; ボデ-(ソノ2); S) |
| 28595-50R00 | Controler Assy-Key Less | Electrical unit (1997-05-01 ~ ; ボデ-(ソノ2); S) |
| 28596-5L300 | Controler Assy-Key Less | Electrical unit (1997-05-01 ~ ; ボデ-(ソノ2); S) |
| 74386-WF010 | Bracket | Electrical unit (1997-05-01 ~ ; ボデ-(ソノ2); S) |
