M101A

Toyota DUET · 2000 · 2,783 parts · 155 categories
M101A ×

← Back to categories

2,783 items

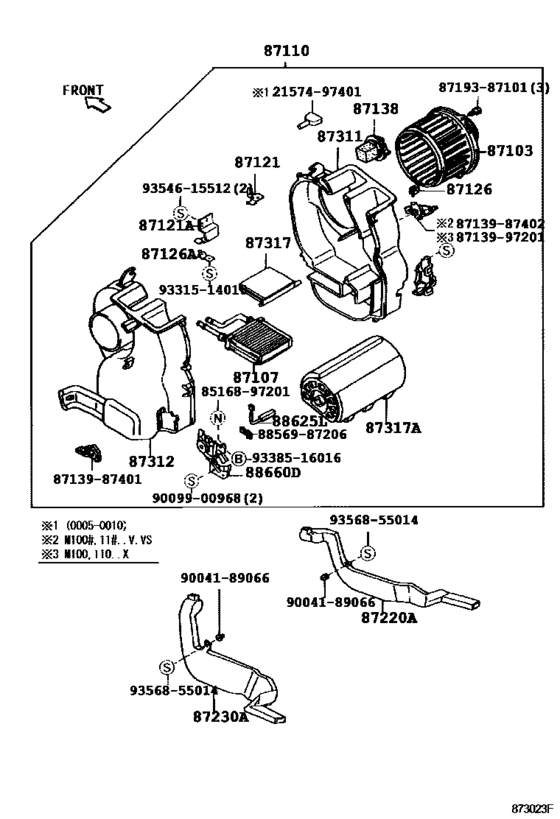

Heating & Air Conditioning - Heater Unit & Blower ([09.1998 - ] (9809- )) 37
#OEMPart name
87103 87103-97201 Motor Sub-Assy, Heater Blower, W/fan
87107 87107-97201 Unit Sub-Assy, Heater Radiator
87110 87110-97404 Heater Assy
87110 87110-97405 Heater Assy
87110 87110-97409 Heater Assy
87110 87110-97410 Heater Assy
87121 87124-97202 Bracket, Heater, Front Rh
87121 88688-97210 Bracket, Heater
87126 87126-87501 Clamp, Heater, No.3
87126 87124-97201 Clamp, Heater Control
87138 87138-97201 Resistor, Heater Blower
87220 87220-97201 Duct Assy, Heater Radiator Air
87220 87220-97401 Duct Assy, Heater Radiator Air
87230 87230-97201 Duct Assy, Heater Air
87311 87311-97401 Case, Heater, No.1
87311 87311-97402 Case, Heater, No.1
87312 87311-97403 Case, Heater, No.2
87312 87311-97404 Case, Heater, No.2
87312 87311-97405 Case, Heater, No.2
87312 87311-97406 Case, Heater, No.2
87317 87317-87401 Damper, Heater Duct
87317 87317-97203 Damper, Heater Duct
88625 88625-97202 Thermistor, Cooler
88660 88660-97201 Servo Assy, Air Conditioner
2157497401 21574-97401 Stopper, A(for Recorder Link Mechanism)
8516897201 85168-97201 Nut, Windshield Wiper Link Pivot
8713987401 87139-87401 Filter, Clean Air
8713987402 87139-87402 Filter, Clean Air
8713997201 87139-97201 Packing, Blower Heater Resistor
8719387101 87193-87101 SCREW TAPPING
8856987206 88569-87206 Clamp (for Cooler Relay)
9004189066 90041-89066 Grommet
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9331514010 93315-14010 SCREW
9338516016 93385-16016 New Genuine Part
9354615512 93546-15512 New Genuine Part
9356855014 93568-55014 Screw
