M101A

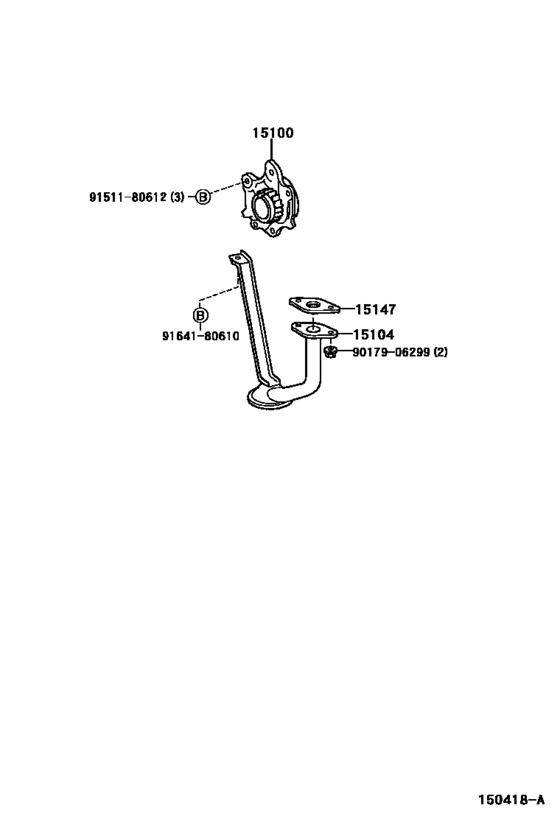

Engine Oil Pump ([05.2000 - ] (0005- )K3VE) 6
| # | OEM | Part name |
|---|---|---|
| 15100 | 15100-97401 | Pump Assy, Oil |
| 15104 | 15140-97401 | Strainer Sub-Assy, Oil |
| 15147 | 15147-97401 | Gasket, Oil Strainer |
| 9017906299 | 90179-06299 | Nut, Wire Adjusting, No.1 |
| 9151180612 | 91511-80612 | New Genuine Part |
| 9164180610 | 91641-80610 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 15100-97401 | Pump Assy, Oil | Engine Oil Pump ([05.2000 - ] (0005- )K3VE) |
| 15140-97401 | Strainer Sub-Assy, Oil | Engine Oil Pump ([05.2000 - ] (0005- )K3VE) |
| 15147-97401 | Gasket, Oil Strainer | Engine Oil Pump ([05.2000 - ] (0005- )K3VE) |
| 90179-06299 | Nut, Wire Adjusting, No.1 | Engine Oil Pump ([05.2000 - ] (0005- )K3VE) |
| 91511-80612 | New Genuine Part | Engine Oil Pump ([05.2000 - ] (0005- )K3VE) |
| 91641-80610 | BOLT WWASHER | Engine Oil Pump ([05.2000 - ] (0005- )K3VE) |
