Search › Model › M100A

M100A

Toyota DUET · 1998 · 3,269 parts · 181 categories

3,269 items

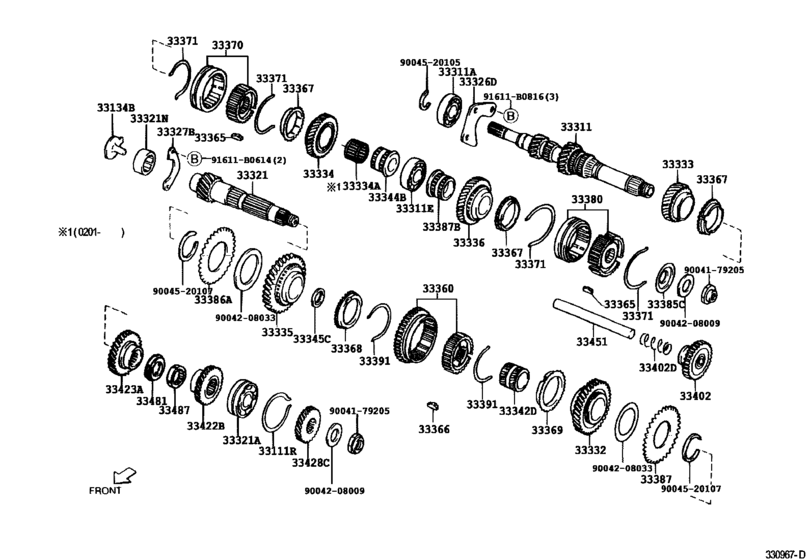

Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F) 46

#	OEM	Part name
33111	90045-20183	Ring, Hole Snap(For Output Shaft Rear Bearing)
33134	33134-87701	Cover, Output Shaft(Mtm)
33311	33311-97202	Shaft, Input
33311	90043-63251	Bearing (For Input Shaft Front)
33321	33321-97209	Shaft, Output
33321	90043-63158	Bearing (For Output Shaft Rear)
33321	90043-63160	Bearing (For Output Shaft Rear)
33321	90043-64072	Bearing (For Output Shaft Front)
33326	33326-97201	Plate, Input Shaft Bearing Lock
33327	33327-87702	Plate, Output Shaft Bearing Lock
33332	33332-97202	Gear, 2Nd
33333	33333-97201	Gear, 3Rd
33334	33334-97203	Gear, 4Th
33335	33335-97203	Gear, 1St
33336	33336-97202	Gear, 5Th
33342	33342-87701	Bush(For 2Nd Gear)
33344	33344-87702	Bush, 4Th Gear
33345	33345-87702	Washer, Transmission Hub
33360	33360-97201	Hub Assy, Synchronizer, No.1
33365	33365-87702	Key, Synchromesh Shifting, No.1
33366	33366-87702	Key, Synchromesh Shifting, No.2
33367	33367-87707	Ring, Synchronizer, No.1
33368	33368-87702	Ring, Synchronizer, No.2
33369	33369-87703	Ring, Synchronizer, No.2
33370	33370-97201	Hub Assy, Synchronizer, No.2
33371	33371-87701	Spring, Synchromesh Shifting Key, No.1
33380	33380-97201	Hub Assy, Synchronizer, No.3
33385	33385-87702	Stopper, Hub Sleeve
33386	33386-97202	Sub-Gear, 1St
33387	33387-97201	Sub-Gear, No.2
33391	33391-87701	Spring, Synchromesh Shifting Key, No.1
33402	33402-97201	Gear Sub-Assy, Reverse Idler
33402	90045-01414	Spring(For Reverse Idler Gear)
33422	33338-87703	Gear, 4Th Driven
33423	33337-87703	Gear, 3Rd Driven
33428	33428-87704	Gear, 5Th Driven
33451	33451-97201	Shaft, Reverse Idler Gear
33481	33481-87712	Gear, Speedometer Drive (Mtm)
33487	33487-97201	Hub, Speedometer Drive Gear
91611	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
91611	91611-B0816	Bolt
9004179205	90041-79205	New Genuine Part
9004208009	90042-08009	New Genuine Part
9004208033	90042-08033	New Genuine Part
9004520105	90045-20105	New Genuine Part
9004520107	90045-20107	Ring, Shaft Snap (For 2Nd Gear)

OEM	Part name	Category
33134-87701	Cover, Output Shaft(Mtm)	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33311-97202	Shaft, Input	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33321-97209	Shaft, Output	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33326-97201	Plate, Input Shaft Bearing Lock	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33327-87702	Plate, Output Shaft Bearing Lock	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33332-97202	Gear, 2Nd	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33333-97201	Gear, 3Rd	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33334-97203	Gear, 4Th	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33335-97203	Gear, 1St	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33336-97202	Gear, 5Th	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33337-87703	Gear, 3Rd Driven	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33338-87703	Gear, 4Th Driven	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33342-87701	Bush(For 2Nd Gear)	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33344-87702	Bush, 4Th Gear	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33345-87702	Washer, Transmission Hub	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33360-97201	Hub Assy, Synchronizer, No.1	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33365-87702	Key, Synchromesh Shifting, No.1	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33366-87702	Key, Synchromesh Shifting, No.2	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33367-87707	Ring, Synchronizer, No.1	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33368-87702	Ring, Synchronizer, No.2	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33369-87703	Ring, Synchronizer, No.2	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33370-97201	Hub Assy, Synchronizer, No.2	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33371-87701	Spring, Synchromesh Shifting Key, No.1	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33380-97201	Hub Assy, Synchronizer, No.3	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33385-87702	Stopper, Hub Sleeve	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33386-97202	Sub-Gear, 1St	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33387-97201	Sub-Gear, No.2	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33391-87701	Spring, Synchromesh Shifting Key, No.1	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33402-97201	Gear Sub-Assy, Reverse Idler	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33428-87704	Gear, 5Th Driven	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33451-97201	Shaft, Reverse Idler Gear	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33481-87712	Gear, Speedometer Drive (Mtm)	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
33487-97201	Hub, Speedometer Drive Gear	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
90041-79205	New Genuine Part	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
90042-08009	New Genuine Part	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
90042-08033	New Genuine Part	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
90043-63158	Bearing (For Output Shaft Rear)	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
90043-63160	Bearing (For Output Shaft Rear)	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
90043-63251	Bearing (For Input Shaft Front)	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
90043-64072	Bearing (For Output Shaft Front)	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
90045-01414	Spring(For Reverse Idler Gear)	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
90045-20105	New Genuine Part	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
90045-20107	Ring, Shaft Snap (For 2Nd Gear)	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
90045-20183	Ring, Hole Snap(For Output Shaft Rear Bearing)	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
91611-B0816	Bolt	Transmission Gear (Mtm) ([09.1998 - ] (9809- )5F)
