Search › Model › M100A

M100A

Toyota DUET · 1998 · 3,269 parts · 181 categories

3,269 items

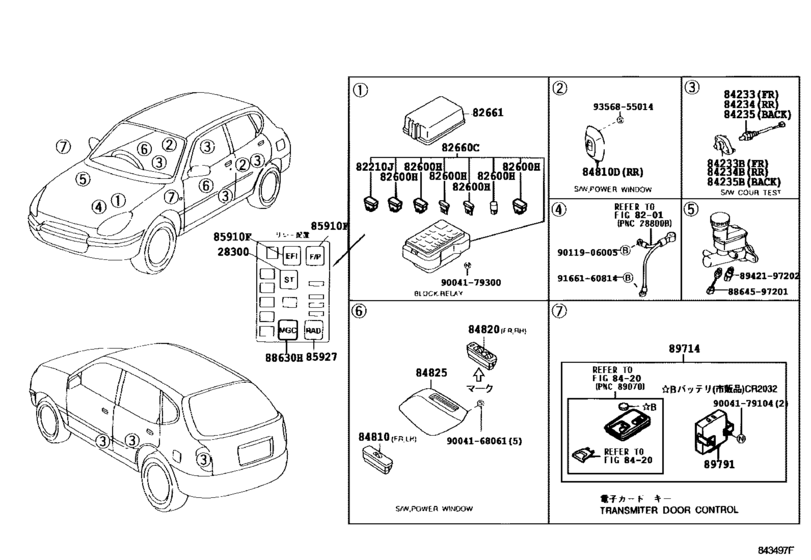

Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112)) 49

#	OEM	Part name
28300	90049-87014	Relay Assy, Starter
28300	90049-88004	Relay Assy, Starter
82210	90049-82033	Fusible Link
82600	90049-40047	Fuse, Fuse Block
82600	90049-40048	Fuse, Fuse Block
82600	90049-40049	Fuse, Fuse Block
82600	90049-40056	Fuse, Fuse Block, No.2
82600	90049-40057	Fuse, Fuse Block, No.2
82600	90049-40060	Fuse, Fuse Block
82660	82660-97270	Block Assy, Relay
82660	82660-97419	Block Assy, Relay
82661	82661-97218	Cover, Relay Block, No.1
84233	84230-87212	Switch Assy, Courtesy Lamp (For Front Door)
84233	84230-97201	Switch Assy, Courtesy Lamp (For Front Door)
84233	84234-87201	Cushion, Courtesy Switch (For Front Door)
84234	84230-97203	Switch Assy, Courtesy Lamp (For Rear Door)
84234	84234-97202	Cushion, Courtesy Switch (For Rear Door)
84810	84810-97202-03	Switch Assy, Power Window Regulator
84810	84810-97202-13	Switch Assy, Power Window Regulator
84810	84810-97401-13	Switch Assy, Power Window Regulator
84810	84810-97401-23	Switch Assy, Power Window Regulator
84810	84810-97206-03	Switch Assy, Power Window Regulator, Rear
84810	84810-97206-B3	Switch Assy, Power Window Regulator, Rear
84810	84810-97206-33	Switch Assy, Power Window Regulator, Rear
84810	84810-97206-B4	Switch Assy, Power Window Regulator
84820	84820-97409-03	Master Switch Assy, Power Window Regulator
84820	84820-97410-03	Master Switch Assy, Power Window Regulator
84820	84820-97409-13	Master Switch Assy, Power Window Regulator
84820	84820-97410-13	Master Switch Assy, Power Window Regulator
84820	84820-97411-03	Master Switch Assy, Power Window Regulator
84820	84820-97411-13	Master Switch Assy, Power Window Regulator
84825	84825-97201-03	Case, Power Window Switch
84825	84825-97201-13	Case, Power Window Switch
84825	84825-97202-03	Case, Power Window Switch
84825	84825-97202-13	Case, Power Window Switch
89714	89714-97411	Computer Set, Smart Entry Key
89714	89714-97428	Computer Set, Smart Entry Key
89714	89714-97422	Computer Set, Smart Entry Key
89714	89714-97425	Computer Set, Smart Entry Key
89791	89791-97211	Computer, Door & Ignition Lock Control
89791	89791-97416	Computer, Door & Ignition Lock Control
8864597201	88645-97201	Device Sub-assy, Idle Up
8942197202	89421-97202	Sensor Assy, Vacuum (for E.f.i.)
9004168061	90041-68061	New Genuine Part
9004179104	90041-79104	New Genuine Part
9004179300	90041-79300	Nut, Booster
9011906005	90119-06005	New Genuine Part
9166160814	91661-60814	New Genuine Part
9356855014	93568-55014	Screw

OEM	Part name	Category
82660-97270	Block Assy, Relay	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
82660-97419	Block Assy, Relay	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
82661-97218	Cover, Relay Block, No.1	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84230-87212	Switch Assy, Courtesy Lamp (For Front Door)	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84230-97201	Switch Assy, Courtesy Lamp (For Front Door)	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84230-97203	Switch Assy, Courtesy Lamp (For Rear Door)	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84234-87201	Cushion, Courtesy Switch (For Front Door)	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84234-97202	Cushion, Courtesy Switch (For Rear Door)	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84810-97202-03	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84810-97202-13	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84810-97206-03	Switch Assy, Power Window Regulator, Rear	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84810-97206-33	Switch Assy, Power Window Regulator, Rear	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84810-97206-B3	Switch Assy, Power Window Regulator, Rear	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84810-97206-B4	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84810-97401-13	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84810-97401-23	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84820-97409-03	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84820-97409-13	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84820-97410-03	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84820-97410-13	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84820-97411-03	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84820-97411-13	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84825-97201-03	Case, Power Window Switch	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84825-97201-13	Case, Power Window Switch	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84825-97202-03	Case, Power Window Switch	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
84825-97202-13	Case, Power Window Switch	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
88645-97201	Device Sub-assy, Idle Up	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
89421-97202	Sensor Assy, Vacuum (for E.f.i.)	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
89714-97411	Computer Set, Smart Entry Key	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
89714-97422	Computer Set, Smart Entry Key	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
89714-97425	Computer Set, Smart Entry Key	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
89714-97428	Computer Set, Smart Entry Key	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
89791-97211	Computer, Door & Ignition Lock Control	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
89791-97416	Computer, Door & Ignition Lock Control	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90041-68061	New Genuine Part	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90041-79104	New Genuine Part	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90041-79300	Nut, Booster	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90049-40047	Fuse, Fuse Block	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90049-40048	Fuse, Fuse Block	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90049-40049	Fuse, Fuse Block	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90049-40056	Fuse, Fuse Block, No.2	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90049-40057	Fuse, Fuse Block, No.2	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90049-40060	Fuse, Fuse Block	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90049-82033	Fusible Link	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90049-87014	Relay Assy, Starter	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90049-88004	Relay Assy, Starter	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
90119-06005	New Genuine Part	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
91661-60814	New Genuine Part	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))
93568-55014	Screw	Switch & Relay & Computer ([05.2000 - 12.2001] (0005-0112))

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 181
Collected: 2026-08-03
