M100A

Toyota DUET · 1998 · 3,269 parts · 181 categories

3,269 items

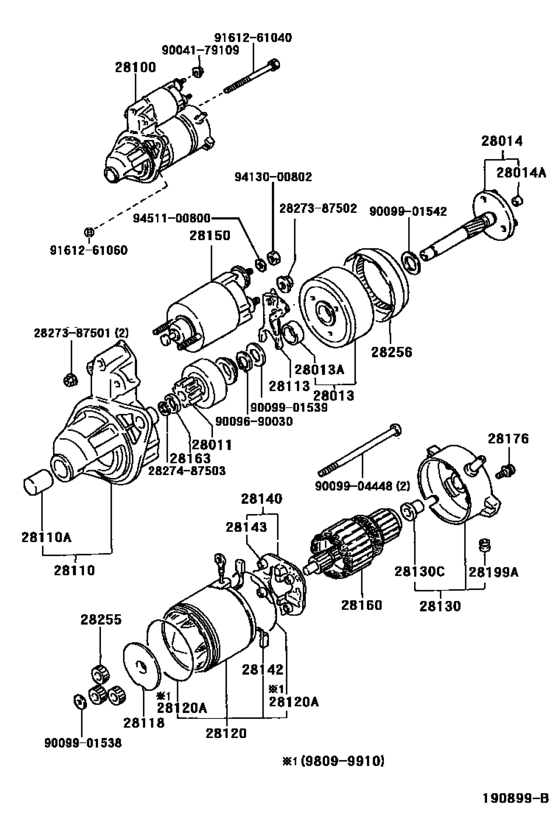

Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106)) 67

#	OEM	Part name
28011	28011-87212	Clutch Sub-Assy, Starter
28011	28011-97203	Clutch Sub-Assy, Starter
28011	28011-97201	Clutch Sub-Assy, Starter
28011	28011-97202	Clutch Sub-Assy, Starter
28013	28126-87201	Bearing, Starter Center & Shock Absorber, No.1
28013	90099-10181	Bearing, Starter Center & Shock Absorber, No.2
28014	28209-87201	Shaft Sub-Assy, Planet Carrier
28014	90099-10180	Bush Or Bearing, Planet Carrier Shaft
28100	28100-87221	Starter Assy
28100	28100-97211	Starter Assy
28100	28100-97203	Starter Assy
28100	28100-97202	Starter Assy
28100	28100-97204	Starter Assy
28100	28100-97213	Starter Assy
28110	28110-87216	Housing Assy, Starter Drive
28110	28110-97203	Housing Assy, Starter Drive
28110	28277-87201	Bearing(For Starter Housing)
28110	28110-97201	Housing Assy, Starter Drive
28110	28110-97202	Housing Assy, Starter Drive
28113	28113-87204	Lever, Starter Pinion Drive
28113	28113-87503	Lever, Starter Pinion Drive
28113	28113-87203	Lever, Starter Pinion Drive
28113	28113-87205	Lever, Starter Pinion Drive
28118	28118-87201	Plate(For Starter Yoke)
28120	28120-87216	Yoke Assy, Starter
28120	28120-87507	Yoke Assy, Starter
28120	28120-97201	Yoke Assy, Starter
28120	90099-14092	Ring, O(For Starter Yoke)
28130	28130-87209	Frame Assy, Starter Commutator End
28130	28133-97204	Frame Assy, Starter Commutator End
28130	90099-10183	Bearing, Starter Flange
28130	28130-97201	Frame Assy, Starter Commutator End
28130	28133-97202	Frame Assy, Starter Commutator End
28140	28140-87202	Holder Assy, Starter Brush
28140	28149-87501	Holder Assy, Starter Brush
28140	28140-87203	Holder Assy, Starter Brush
28142	28142-87204	Brush, Starter
28142	28142-87504	Brush, Starter
28143	28143-10020	Spring, Starter Brush
28143	28143-87202	Spring, Starter Brush
28150	28150-87208	Switch Assy, Magnet Starter
28150	28150-87209	Switch Assy, Magnet Starter
28160	28160-87205	Armature Assy, Starter
28160	28160-87208	Armature Assy, Starter
28160	28160-97201	Armature Assy, Starter
28163	28142-87505	Nut Or Collar, Pinion Stop, Starter
28163	28163-87202	Nut Or Collar, Pinion Stop, Starter
28176	28176-87201	Screw, Starter
28176	28176-87701	Screw, Starter
28199	28199-87202	Protector, Dust Starter
28199	28199-87505	Protector, Dust Starter
28255	28185-87201	Gear, Planet
28256	28184-87201	Gear, Starter Internal
2827387501	28273-87501	New Genuine Part
2827387502	28273-87502	New Genuine Part
2827487503	28274-87503	Ring, Snap(For Starter Pinion Stop Nut)
9004179109	90041-79109	New Genuine Part
9009690030	90096-90030	Ring, Snap, Starter Clutch Housing Disc
9009901538	90099-01538	New Genuine Part
9009901539	90099-01539	New Genuine Part
9009901542	90099-01542	New Genuine Part
9009904448	90099-04448	Bolt, Starter
9161261040	91612-61040	Bolt(For Transmission Case & Engine Setting)
9161261060	91612-61060	Bolt(for Clutch Release Cylinder Setting)
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-87212	Clutch Sub-Assy, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28011-97201	Clutch Sub-Assy, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28011-97202	Clutch Sub-Assy, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28011-97203	Clutch Sub-Assy, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28100-87221	Starter Assy	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28100-97202	Starter Assy	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28100-97203	Starter Assy	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28100-97204	Starter Assy	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28100-97211	Starter Assy	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28100-97213	Starter Assy	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28110-87216	Housing Assy, Starter Drive	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28110-97201	Housing Assy, Starter Drive	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28110-97202	Housing Assy, Starter Drive	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28110-97203	Housing Assy, Starter Drive	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28113-87203	Lever, Starter Pinion Drive	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28113-87204	Lever, Starter Pinion Drive	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28113-87205	Lever, Starter Pinion Drive	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28113-87503	Lever, Starter Pinion Drive	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28118-87201	Plate(For Starter Yoke)	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28120-87216	Yoke Assy, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28120-87507	Yoke Assy, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28120-97201	Yoke Assy, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28126-87201	Bearing, Starter Center & Shock Absorber, No.1	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28130-87209	Frame Assy, Starter Commutator End	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28130-97201	Frame Assy, Starter Commutator End	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28133-97202	Frame Assy, Starter Commutator End	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28133-97204	Frame Assy, Starter Commutator End	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28140-87202	Holder Assy, Starter Brush	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28140-87203	Holder Assy, Starter Brush	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28142-87204	Brush, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28142-87504	Brush, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28142-87505	Nut Or Collar, Pinion Stop, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28143-10020	Spring, Starter Brush	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28143-87202	Spring, Starter Brush	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28149-87501	Holder Assy, Starter Brush	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28150-87208	Switch Assy, Magnet Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28150-87209	Switch Assy, Magnet Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28160-87205	Armature Assy, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28160-87208	Armature Assy, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28160-97201	Armature Assy, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28163-87202	Nut Or Collar, Pinion Stop, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28176-87201	Screw, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28176-87701	Screw, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28184-87201	Gear, Starter Internal	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28185-87201	Gear, Planet	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28199-87202	Protector, Dust Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28199-87505	Protector, Dust Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28209-87201	Shaft Sub-Assy, Planet Carrier	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28273-87501	New Genuine Part	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28273-87502	New Genuine Part	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28274-87503	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
28277-87201	Bearing(For Starter Housing)	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
90041-79109	New Genuine Part	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
90096-90030	Ring, Snap, Starter Clutch Housing Disc	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
90099-01538	New Genuine Part	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
90099-01539	New Genuine Part	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
90099-01542	New Genuine Part	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
90099-04448	Bolt, Starter	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
90099-10180	Bush Or Bearing, Planet Carrier Shaft	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
90099-10181	Bearing, Starter Center & Shock Absorber, No.2	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
90099-10183	Bearing, Starter Flange	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
90099-14092	Ring, O(For Starter Yoke)	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
90170-A0001	New Genuine Part	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
91612-61040	Bolt(For Transmission Case & Engine Setting)	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
91612-61060	Bolt(for Clutch Release Cylinder Setting)	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
94511-00800	WASHERSPRING	Starter ([09.1998 - 06.2001] 12V 1.0KW (9809-0106))
