Search › Model › M100A

M100A

Toyota DUET · 1998 · 3,269 parts · 181 categories

3,269 items

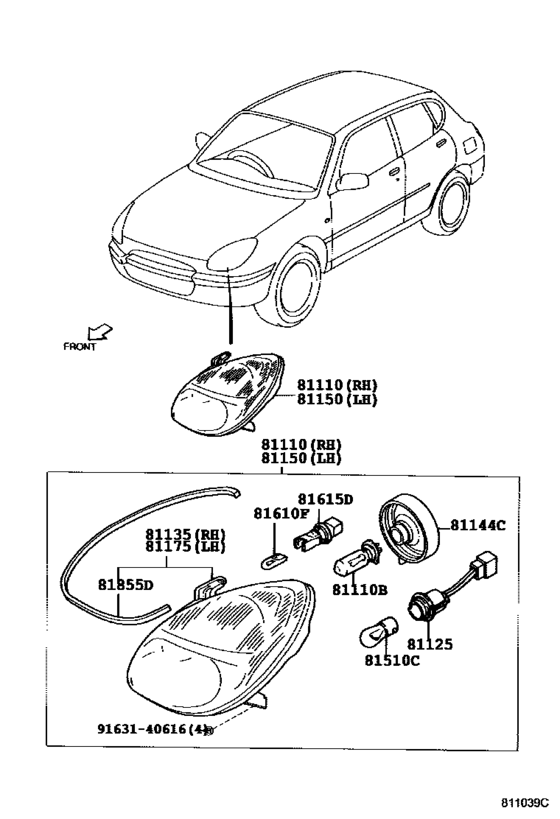

Headlamp ([09.1998 - 12.2001] (9809-0112)) 29

#	OEM	Part name
81110	81110-97241	Headlamp Assy, Rh
81110	99132-12050	Bulb (12V 5W)
81110	81125-87401	Socket, Clearance Lamp
81110	81125-97202	Cord, Headlamp
81110	81130-97213	Unit Assy, Headlamp, Rh
81110	81139-87401	Cover, Headlamp Socket
81110	81855-97201	Protector, Headlamp
81110	90049-51088	Bulb(For Headlamp, No.1)
81110	90049-51148	Bulb (For Front Turn Signal Lamp)
81110	91631-40616	Bolt(For Head To Camshaft Bearing Cap)
81110	81110-97417	Headlamp Assy, Rh
81110	81110-97429	Headlamp Assy, Rh
81125	81179-97402	Cord, Headlamp
81135	81130-97406	Unit Assy, Headlamp, Rh
81135	81130-97412	Unit Assy, Headlamp, Rh
81150	81150-97241	Headlamp Assy, Lh
81150	81170-97213	Unit Assy, Headlamp, Lh
81150	81855-97202	Protector, Headlamp
81150	81150-97417	Headlamp Assy, Lh
81150	81150-97429	Headlamp Assy, Lh
81175	81170-97406	Unit Assy, Headlamp, Lh
81175	81170-97412	Unit Assy, Headlamp, Lh
81510	90049-51124	Bulb (For Front Turn Signal Lamp)
81610	90049-51029	Bulb(For Clearance Lamp)
81610	90981-11013	Bulb(For Courtesy Lamp)
81855	81855-97401	Protector, Headlamp
81855	81855-97403	Protector, Headlamp
81855	81855-97402	Protector, Headlamp
81855	81855-97404	Protector, Headlamp

OEM	Part name	Category
81110-97241	Headlamp Assy, Rh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81110-97417	Headlamp Assy, Rh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81110-97429	Headlamp Assy, Rh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81125-87401	Socket, Clearance Lamp	Headlamp ([09.1998 - 12.2001] (9809-0112))
81125-97202	Cord, Headlamp	Headlamp ([09.1998 - 12.2001] (9809-0112))
81130-97213	Unit Assy, Headlamp, Rh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81130-97406	Unit Assy, Headlamp, Rh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81130-97412	Unit Assy, Headlamp, Rh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81139-87401	Cover, Headlamp Socket	Headlamp ([09.1998 - 12.2001] (9809-0112))
81150-97241	Headlamp Assy, Lh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81150-97417	Headlamp Assy, Lh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81150-97429	Headlamp Assy, Lh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81170-97213	Unit Assy, Headlamp, Lh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81170-97406	Unit Assy, Headlamp, Lh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81170-97412	Unit Assy, Headlamp, Lh	Headlamp ([09.1998 - 12.2001] (9809-0112))
81179-97402	Cord, Headlamp	Headlamp ([09.1998 - 12.2001] (9809-0112))
81855-97201	Protector, Headlamp	Headlamp ([09.1998 - 12.2001] (9809-0112))
81855-97202	Protector, Headlamp	Headlamp ([09.1998 - 12.2001] (9809-0112))
81855-97401	Protector, Headlamp	Headlamp ([09.1998 - 12.2001] (9809-0112))
81855-97402	Protector, Headlamp	Headlamp ([09.1998 - 12.2001] (9809-0112))
81855-97403	Protector, Headlamp	Headlamp ([09.1998 - 12.2001] (9809-0112))
81855-97404	Protector, Headlamp	Headlamp ([09.1998 - 12.2001] (9809-0112))
90049-51029	Bulb(For Clearance Lamp)	Headlamp ([09.1998 - 12.2001] (9809-0112))
90049-51088	Bulb(For Headlamp, No.1)	Headlamp ([09.1998 - 12.2001] (9809-0112))
90049-51124	Bulb (For Front Turn Signal Lamp)	Headlamp ([09.1998 - 12.2001] (9809-0112))
90049-51148	Bulb (For Front Turn Signal Lamp)	Headlamp ([09.1998 - 12.2001] (9809-0112))
90981-11013	Bulb(For Courtesy Lamp)	Headlamp ([09.1998 - 12.2001] (9809-0112))
91631-40616	Bolt(For Head To Camshaft Bearing Cap)	Headlamp ([09.1998 - 12.2001] (9809-0112))
99132-12050	Bulb (12V 5W)	Headlamp ([09.1998 - 12.2001] (9809-0112))
