M100A

Toyota DUET · 1998 · 3,269 parts · 181 categories

3,269 items

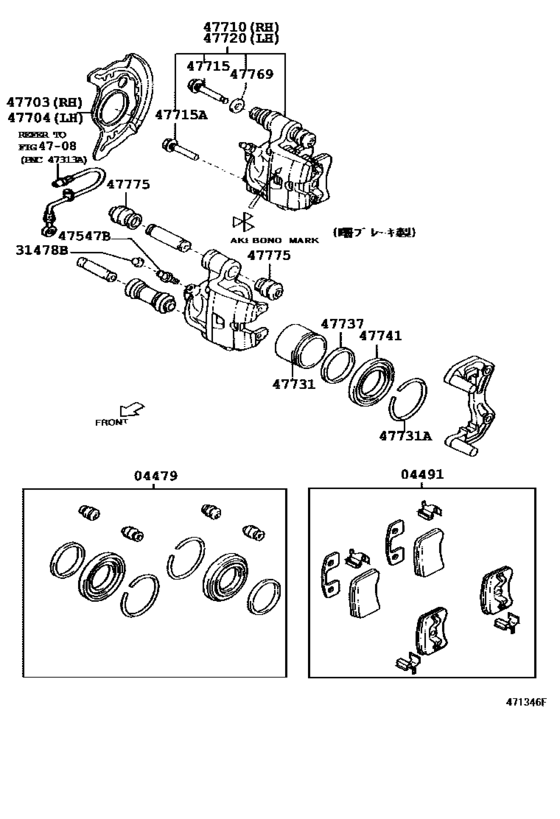

Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X) 21

#	OEM	Part name
4479	04479-97201	Cylinder Kit, Disc Brake, Front
4491	04491-97401	Pad Kit, Disc Brake, Front
4491	04491-B4010	Pad Kit, Disc Brake, Front
31478	47548-87303	Cap, Bleeder Plug(For Front Disc Brake)
31478	47548-B3010	Cap, Bleeder Plug(For Front Disc Brake)
47547	47547-87207	Plug, Bleeder(For Front Disc Brake)
47703	47781-97201	Cover Sub-Assy, Disc Brake Dust, Front Rh
47703	47781-97402	Cover, Disc Brake Dust, Front Rh
47704	47782-97201	Cover Sub-Assy, Disc Brake Dust, Front Lh
47704	47782-97402	Cover, Disc Brake Dust, Front Lh
47710	47710-97401	Caliper Assy, Disc Brake, Front, Rh
47715	47715-97202	Pin, Main(For Front Disc Brake Cylinder Slide)
47715	47714-B2020	Pin, Front Disc Brake Cylinder Slide, No.2
47715	47715-97201	Pin, Front Disc Brake Cylinder Slide
47720	47720-97401	Caliper Assy, Disc Brake, Front, Lh
47731	47731-97201	Piston, Front Disc Brake
47731	90045-22017	Ring, Set(For Front Disc Brake Piston)
47737	47737-97201	Seal, Front Disc Brake Cylinder Piston
47741	47741-87202	Boot, Front Disc Brake Cylinder
47769	47769-97201	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775	47775-97201	Boot, Bush Dust(For Front Disc Brake)

OEM	Part name	Category
04479-97201	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
04491-97401	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
04491-B4010	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47547-87207	Plug, Bleeder(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47548-87303	Cap, Bleeder Plug(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47548-B3010	Cap, Bleeder Plug(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47710-97401	Caliper Assy, Disc Brake, Front, Rh	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47714-B2020	Pin, Front Disc Brake Cylinder Slide, No.2	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47715-97201	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47715-97202	Pin, Main(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47720-97401	Caliper Assy, Disc Brake, Front, Lh	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47731-97201	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47737-97201	Seal, Front Disc Brake Cylinder Piston	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47741-87202	Boot, Front Disc Brake Cylinder	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47769-97201	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47775-97201	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47781-97201	Cover Sub-Assy, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47781-97402	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47782-97201	Cover Sub-Assy, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
47782-97402	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
90045-22017	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([09.1998 - 12.2001] (9809-0112) ; (0112- )V,X)
