Search › Model › M100A

M100A

Toyota DUET · 1998 · 3,269 parts · 181 categories

3,269 items

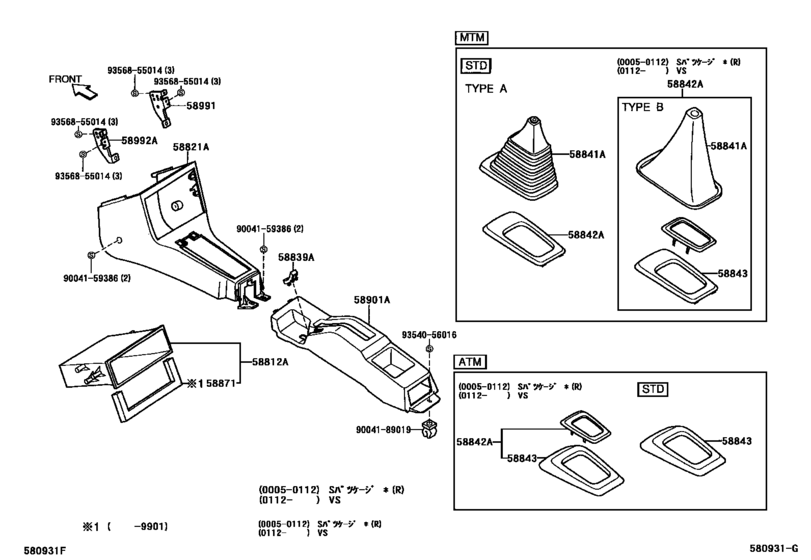

Console Box & Bracket ([09.1998 - ] (9809- )) 24

#	OEM	Part name
58812	58812-97202-01	Box, Console, Lower
58812	58812-97202-N1	Box, Console, Lower
58812	58812-97202-03	Box, Console, Lower
58821	58821-97201-03	Panel, Console
58821	58821-97201-13	Panel, Console
58839	58839-97201-03	Cover, Console Box Hole
58839	58839-97201-23	Cover, Console Box Hole
58841	58841-97201-03	Cover, Shifting Hole
58841	58841-97201-01	Cover, Shifting Hole
58841	58841-97201-13	Cover, Shifting Hole
58842	58842-97201	Frame, Shifting Hole
58843	58843-97201-03	Bezel, Shifting Hole
58843	58843-97201-B0	Bezel, Shifting Hole
58843	58843-97201-13	Bezel, Shifting Hole
58901	58911-97201-03	Box Sub-Assy, Console, Rear
58901	58911-97201-23	Box Sub-Assy, Console, Rear
58901	58911-97202-03	Box Sub-Assy, Console, Rear
58901	58911-97202-13	Box Sub-Assy, Console, Rear
58991	58991-97201	Bracket, Console Box Mounting, Upper
58992	58992-97201	Bracket, Console Box Mounting, Upr Lh
9004159386	90041-59386	New Genuine Part
9004189019	90041-89019	Grommet(For Front Door Panel)
9354056016	93540-56016	New Genuine Part
9356855014	93568-55014	Screw

OEM	Part name	Category
58812-97202-01	Box, Console, Lower	Console Box & Bracket ([09.1998 - ] (9809- ))
58812-97202-03	Box, Console, Lower	Console Box & Bracket ([09.1998 - ] (9809- ))
58812-97202-N1	Box, Console, Lower	Console Box & Bracket ([09.1998 - ] (9809- ))
58821-97201-03	Panel, Console	Console Box & Bracket ([09.1998 - ] (9809- ))
58821-97201-13	Panel, Console	Console Box & Bracket ([09.1998 - ] (9809- ))
58839-97201-03	Cover, Console Box Hole	Console Box & Bracket ([09.1998 - ] (9809- ))
58839-97201-23	Cover, Console Box Hole	Console Box & Bracket ([09.1998 - ] (9809- ))
58841-97201-01	Cover, Shifting Hole	Console Box & Bracket ([09.1998 - ] (9809- ))
58841-97201-03	Cover, Shifting Hole	Console Box & Bracket ([09.1998 - ] (9809- ))
58841-97201-13	Cover, Shifting Hole	Console Box & Bracket ([09.1998 - ] (9809- ))
58842-97201	Frame, Shifting Hole	Console Box & Bracket ([09.1998 - ] (9809- ))
58843-97201-03	Bezel, Shifting Hole	Console Box & Bracket ([09.1998 - ] (9809- ))
58843-97201-13	Bezel, Shifting Hole	Console Box & Bracket ([09.1998 - ] (9809- ))
58843-97201-B0	Bezel, Shifting Hole	Console Box & Bracket ([09.1998 - ] (9809- ))
58911-97201-03	Box Sub-Assy, Console, Rear	Console Box & Bracket ([09.1998 - ] (9809- ))
58911-97201-23	Box Sub-Assy, Console, Rear	Console Box & Bracket ([09.1998 - ] (9809- ))
58911-97202-03	Box Sub-Assy, Console, Rear	Console Box & Bracket ([09.1998 - ] (9809- ))
58911-97202-13	Box Sub-Assy, Console, Rear	Console Box & Bracket ([09.1998 - ] (9809- ))
58991-97201	Bracket, Console Box Mounting, Upper	Console Box & Bracket ([09.1998 - ] (9809- ))
58992-97201	Bracket, Console Box Mounting, Upr Lh	Console Box & Bracket ([09.1998 - ] (9809- ))
90041-59386	New Genuine Part	Console Box & Bracket ([09.1998 - ] (9809- ))
90041-89019	Grommet(For Front Door Panel)	Console Box & Bracket ([09.1998 - ] (9809- ))
93540-56016	New Genuine Part	Console Box & Bracket ([09.1998 - ] (9809- ))
93568-55014	Screw	Console Box & Bracket ([09.1998 - ] (9809- ))
