M100A

Toyota DUET · 1998 · 3,269 parts · 181 categories

3,269 items

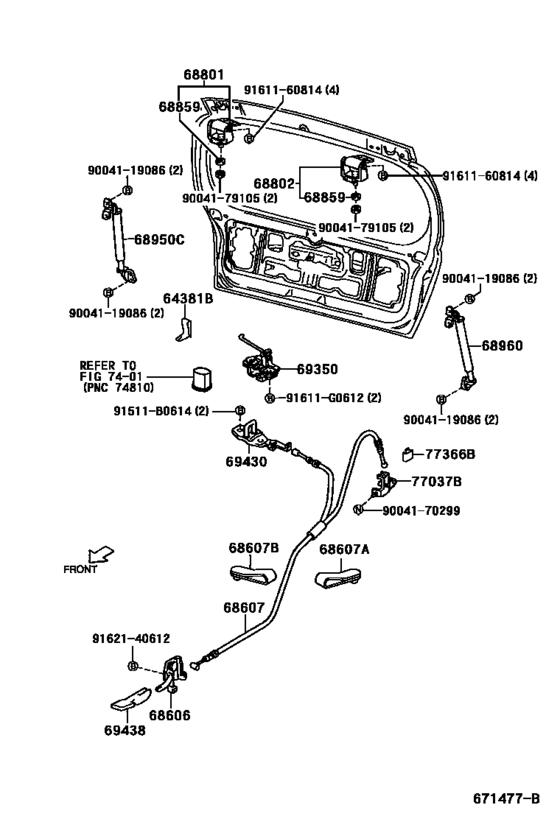

Back Door Lock & Handle ([09.1998 - ] (9809- )) 24

#	OEM	Part name
64381	64381-97201	Hanger, Package Tray Trim
68606	64606-97204	Lever Sub-Assy, Back Door Lock Open
68607	64607-97204	Cable Sub-Assy, Back Door Lock Control
68607	90044-64119	Clamp, No.1(For Back Door Lock Control Cable)
68607	90044-64680	Clamp, No.2(For Back Door Lock Control Cable)
68801	68801-97201	Hinge Sub-Assy, Back Door, Upper Rh
68801	68801-97209	Hinge Sub-Assy, Back Door, Upper Rh
68802	68801-97202	Hinge Sub-Assy, Back Door, Upper Lh
68802	68801-97210	Hinge Sub-Assy, Back Door, Upper Lh
68859	68859-87201	Packing, Back Door Hinge
68950	68950-97202	Stay Assy, Back Door, Rh
68960	68960-97202	Stay Assy, Back Door, Lh
69350	69350-97205	Lock Assy, Back Door
69430	69430-97201	Handle Assy, Back Door Pull Center
69438	69438-97204	Lever, Back Door Lock Open
77037	77037-97201	Lock Sub-Assy, Fuel Filler Opening Lid
77366	77366-87203	Spring, Fuel Filler Opening Lid Hinge
91511	91511-B0614	BOLT, FLANGE
91611	91611-G0612	Bolt
9004119086	90041-19086	New Genuine Part
9004170299	90041-70299	New Genuine Part
9004179105	90041-79105	New Genuine Part
9161160814	91611-60814	Bolt
9162140612	91621-40612	BOLT W-WASHER

OEM	Part name	Category
64381-97201	Hanger, Package Tray Trim	Back Door Lock & Handle ([09.1998 - ] (9809- ))
64606-97204	Lever Sub-Assy, Back Door Lock Open	Back Door Lock & Handle ([09.1998 - ] (9809- ))
64607-97204	Cable Sub-Assy, Back Door Lock Control	Back Door Lock & Handle ([09.1998 - ] (9809- ))
68801-97201	Hinge Sub-Assy, Back Door, Upper Rh	Back Door Lock & Handle ([09.1998 - ] (9809- ))
68801-97202	Hinge Sub-Assy, Back Door, Upper Lh	Back Door Lock & Handle ([09.1998 - ] (9809- ))
68801-97209	Hinge Sub-Assy, Back Door, Upper Rh	Back Door Lock & Handle ([09.1998 - ] (9809- ))
68801-97210	Hinge Sub-Assy, Back Door, Upper Lh	Back Door Lock & Handle ([09.1998 - ] (9809- ))
68859-87201	Packing, Back Door Hinge	Back Door Lock & Handle ([09.1998 - ] (9809- ))
68950-97202	Stay Assy, Back Door, Rh	Back Door Lock & Handle ([09.1998 - ] (9809- ))
68960-97202	Stay Assy, Back Door, Lh	Back Door Lock & Handle ([09.1998 - ] (9809- ))
69350-97205	Lock Assy, Back Door	Back Door Lock & Handle ([09.1998 - ] (9809- ))
69430-97201	Handle Assy, Back Door Pull Center	Back Door Lock & Handle ([09.1998 - ] (9809- ))
69438-97204	Lever, Back Door Lock Open	Back Door Lock & Handle ([09.1998 - ] (9809- ))
77037-97201	Lock Sub-Assy, Fuel Filler Opening Lid	Back Door Lock & Handle ([09.1998 - ] (9809- ))
77366-87203	Spring, Fuel Filler Opening Lid Hinge	Back Door Lock & Handle ([09.1998 - ] (9809- ))
90041-19086	New Genuine Part	Back Door Lock & Handle ([09.1998 - ] (9809- ))
90041-70299	New Genuine Part	Back Door Lock & Handle ([09.1998 - ] (9809- ))
90041-79105	New Genuine Part	Back Door Lock & Handle ([09.1998 - ] (9809- ))
90044-64119	Clamp, No.1(For Back Door Lock Control Cable)	Back Door Lock & Handle ([09.1998 - ] (9809- ))
90044-64680	Clamp, No.2(For Back Door Lock Control Cable)	Back Door Lock & Handle ([09.1998 - ] (9809- ))
91511-B0614	BOLT, FLANGE	Back Door Lock & Handle ([09.1998 - ] (9809- ))
91611-60814	Bolt	Back Door Lock & Handle ([09.1998 - ] (9809- ))
91611-G0612	Bolt	Back Door Lock & Handle ([09.1998 - ] (9809- ))
91621-40612	BOLT W-WASHER	Back Door Lock & Handle ([09.1998 - ] (9809- ))
