Search › Model › M100A
M100A

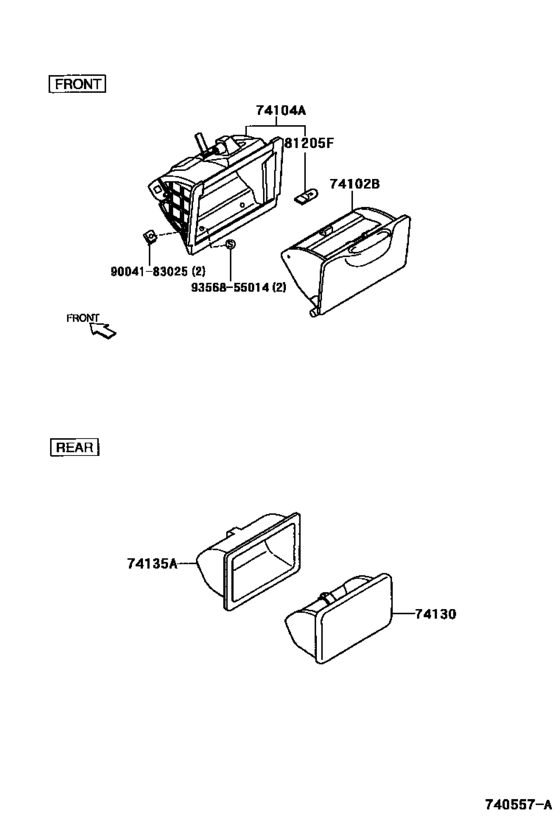

Ash Receptacle ([09.1998 - 12.2001] (9809-0112)) 9
| # | OEM | Part name |
|---|---|---|
| 74102 | 74102-97402 | Box Sub-Assy, Front Ash Receptacle |
| 74102 | 74102-97502-01 | Box Sub-Assy, Front Ash Receptacle |
| 74104 | 74104-97401 | Retainer Sub-Assy, Front Ash Receptacle |
| 74104 | 74104-97501 | Retainer Sub-Assy, Front Ash Receptacle |
| 74130 | 74109-87604 | Receptacle Assy, Rear Ash |
| 74135 | 74108-87102 | Retainer, Rear Ash Receptacle, No.1 |
| 81205 | 81205-97201 | Lamp Sub-Assy, Ash Receptacle |
| 9004183025 | 90041-83025 | New Genuine Part |
| 9356855014 | 93568-55014 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 74102-97402 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([09.1998 - 12.2001] (9809-0112)) |
| 74102-97502-01 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([09.1998 - 12.2001] (9809-0112)) |
| 74104-97401 | Retainer Sub-Assy, Front Ash Receptacle | Ash Receptacle ([09.1998 - 12.2001] (9809-0112)) |
| 74104-97501 | Retainer Sub-Assy, Front Ash Receptacle | Ash Receptacle ([09.1998 - 12.2001] (9809-0112)) |
| 74108-87102 | Retainer, Rear Ash Receptacle, No.1 | Ash Receptacle ([09.1998 - 12.2001] (9809-0112)) |
| 74109-87604 | Receptacle Assy, Rear Ash | Ash Receptacle ([09.1998 - 12.2001] (9809-0112)) |
| 81205-97201 | Lamp Sub-Assy, Ash Receptacle | Ash Receptacle ([09.1998 - 12.2001] (9809-0112)) |
| 90041-83025 | New Genuine Part | Ash Receptacle ([09.1998 - 12.2001] (9809-0112)) |
| 93568-55014 | Screw | Ash Receptacle ([09.1998 - 12.2001] (9809-0112)) |
