Search › Model › M10
M10

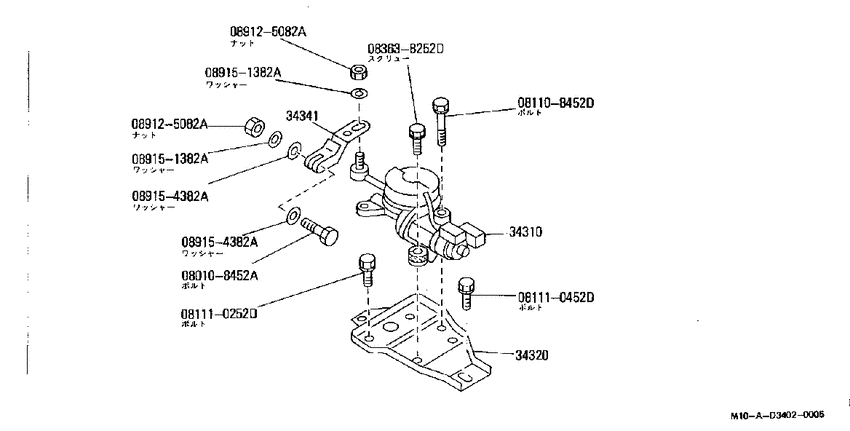

transfer control & linkage (1985-10-01 ~ ; 4WD) 10
| # | OEM | Part name |
|---|---|---|
| 34310 | 34310-06R00 | Actuator Assy-Transfer |
| 34320 | 34320-10R00 | Bracket |
| 34341 | 34341-06R00 | Lever-Transfer |
| 80108452 | 08010-8452A | Bolt-hexagon |
| 81108452 | 08110-8452D | Bolt-hexagon |
| 81110252 | 08111-0252D | Bolt-hexagon |
| 81110452 | 08111-0452D | Bolt-hexagon |
| 83638252 | 08363-8252D | SCREWMACHINE |
| 89125082 | 08912-5082A | ナツト,ヘクサゴン |
| 89151382 | 08915-1382A | ワツシヤ-,スプリング |
| OEM | Part name | Category |
|---|---|---|
| 08010-8452A | Bolt-hexagon | transfer control & linkage (1985-10-01 ~ ; 4WD) |
| 08110-8452D | Bolt-hexagon | transfer control & linkage (1985-10-01 ~ ; 4WD) |
| 08111-0252D | Bolt-hexagon | transfer control & linkage (1985-10-01 ~ ; 4WD) |
| 08111-0452D | Bolt-hexagon | transfer control & linkage (1985-10-01 ~ ; 4WD) |
| 08363-8252D | SCREWMACHINE | transfer control & linkage (1985-10-01 ~ ; 4WD) |
| 08912-5082A | ナツト,ヘクサゴン | transfer control & linkage (1985-10-01 ~ ; 4WD) |
| 08915-1382A | ワツシヤ-,スプリング | transfer control & linkage (1985-10-01 ~ ; 4WD) |
| 34310-06R00 | Actuator Assy-Transfer | transfer control & linkage (1985-10-01 ~ ; 4WD) |
| 34320-10R00 | Bracket | transfer control & linkage (1985-10-01 ~ ; 4WD) |
| 34341-06R00 | Lever-Transfer | transfer control & linkage (1985-10-01 ~ ; 4WD) |
