M10

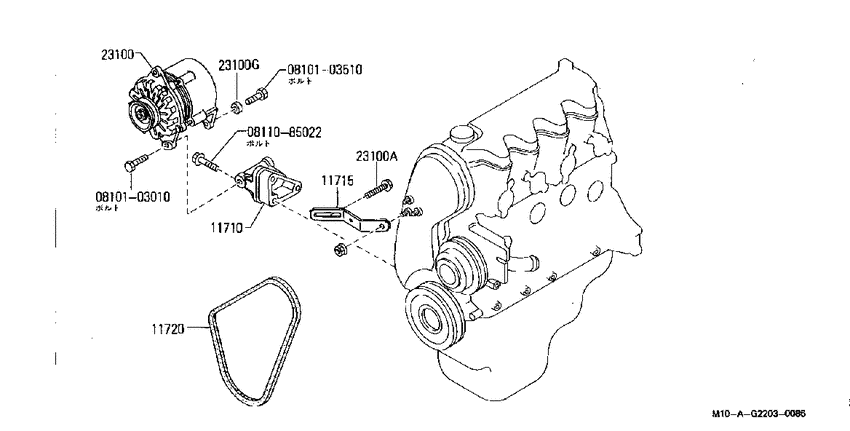

Alternator mounting (1982-08-01 ~ ; E15S) 9
| # | OEM | Part name |
|---|---|---|
| 11710 | 11710-01M01 | Bracket-Alternator |
| 11715 | 11715-01M02 | Bar-Adjusting, Alternator |
| 11715 | 11715-01M03 | Bar-Adjusting, Alternator |
| 23100 | 23100-H7703 | Alternator Assy |
| 23100 | 23164-H0100 | Bolt |
| 23100 | 11713-01M00 | Spacer-Alternator |
| 810103010 | 08101-03010 | BOLT |
| 810103510 | 08101-03510 | BOLT |
| 811085022 | 08110-85022 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08101-03010 | BOLT | Alternator mounting (1982-08-01 ~ ; E15S) |
| 08101-03510 | BOLT | Alternator mounting (1982-08-01 ~ ; E15S) |
| 08110-85022 | Bolt-hexagon | Alternator mounting (1982-08-01 ~ ; E15S) |
| 11710-01M01 | Bracket-Alternator | Alternator mounting (1982-08-01 ~ ; E15S) |
| 11713-01M00 | Spacer-Alternator | Alternator mounting (1982-08-01 ~ ; E15S) |
| 11715-01M02 | Bar-Adjusting, Alternator | Alternator mounting (1982-08-01 ~ ; E15S) |
| 11715-01M03 | Bar-Adjusting, Alternator | Alternator mounting (1982-08-01 ~ ; E15S) |
| 23100-H7703 | Alternator Assy | Alternator mounting (1982-08-01 ~ ; E15S) |
| 23164-H0100 | Bolt | Alternator mounting (1982-08-01 ~ ; E15S) |
