LY61

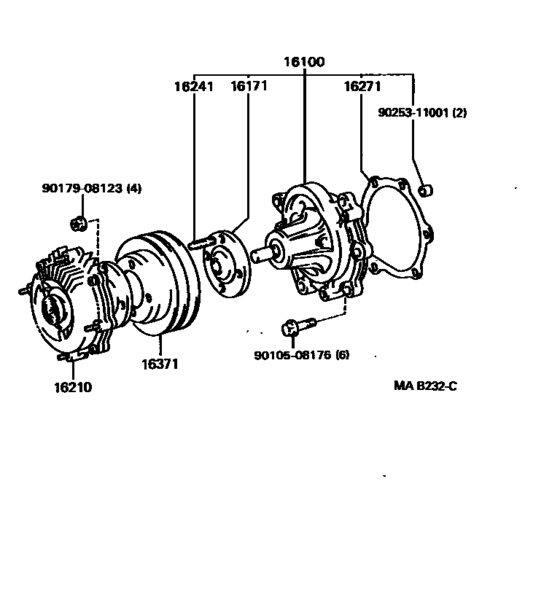

Water Pump ([08.1988 - ] (8808- )2L,3L) 11
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-59155 | Pump Assy, Engine Water |
| 16100 | 16100-59257 | Pump Assy, Engine Water |
| 16171 | 16171-41170 | Seat, Water Pump Pulley |
| 16210 | 16210-54150 | Coupling Assy, Fluid |
| 16241 | 92122-40816 | Bolt, Stud(For Oil Strainer) |
| 16271 | 16271-54020 | Gasket, Water Pump |
| 16271 | 16271-54030 | Gasket, Water Pump |
| 16371 | 16371-54030 | Pulley, Fan |
| 9010508176 | 90105-08176 | BOLT |
| 9017908123 | 90179-08123 | Nut (For Front Wiper Arm Setting) |
| 9025311001 | 90253-11001 | Pin, Ring(For Camshaft Bearing Cap Setting) |
| OEM | Part name | Category |
|---|---|---|
| 16100-59155 | Pump Assy, Engine Water | Water Pump ([08.1988 - ] (8808- )2L,3L) |
| 16100-59257 | Pump Assy, Engine Water | Water Pump ([08.1988 - ] (8808- )2L,3L) |
| 16171-41170 | Seat, Water Pump Pulley | Water Pump ([08.1988 - ] (8808- )2L,3L) |
| 16210-54150 | Coupling Assy, Fluid | Water Pump ([08.1988 - ] (8808- )2L,3L) |
| 16271-54020 | Gasket, Water Pump | Water Pump ([08.1988 - ] (8808- )2L,3L) |
| 16271-54030 | Gasket, Water Pump | Water Pump ([08.1988 - ] (8808- )2L,3L) |
| 16371-54030 | Pulley, Fan | Water Pump ([08.1988 - ] (8808- )2L,3L) |
| 90105-08176 | BOLT | Water Pump ([08.1988 - ] (8808- )2L,3L) |
| 90179-08123 | Nut (For Front Wiper Arm Setting) | Water Pump ([08.1988 - ] (8808- )2L,3L) |
| 90253-11001 | Pin, Ring(For Camshaft Bearing Cap Setting) | Water Pump ([08.1988 - ] (8808- )2L,3L) |
| 92122-40816 | Bolt, Stud(For Oil Strainer) | Water Pump ([08.1988 - ] (8808- )2L,3L) |
