LY61

Toyota TOYOACE-DYNA · 1988 · 4,106 parts · 171 categories
LY61 ×

← Back to categories

4,106 items

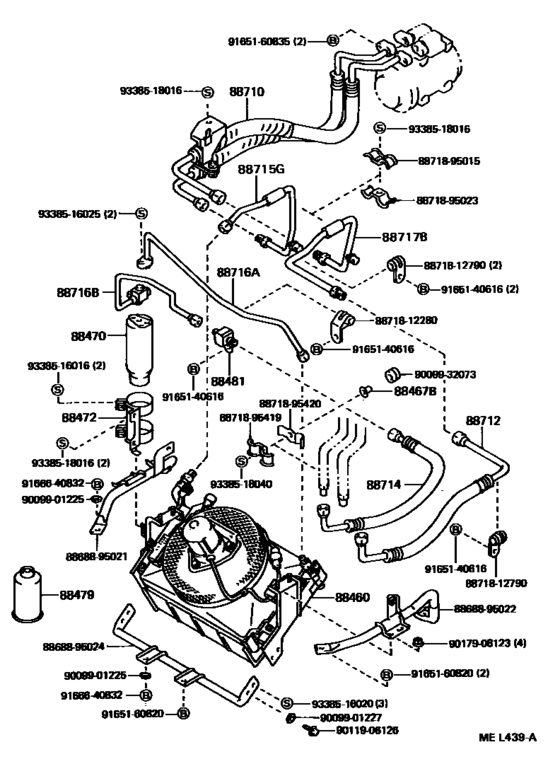

Heating & Air Conditioning - Cooler Piping ([08.1988 - 09.1993] (8808-9309)LY5#,61) 54
#OEMPart name
88460 88460-25030 Condenser Assy, Cooler
88460 88460-95015 Condenser Assy, Cooler
88467 88467-22010 Insulator, Cooler Condenser Mounting
88470 88471-16040 Receiver & Dryer Assy, Cooler
88470 88471-16050 Receiver & Dryer Assy, Cooler
88470 88471-20050 Receiver & Dryer Assy, Cooler
88470 88471-34010 Receiver & Dryer Assy, Cooler
88472 88472-95011 Bracket, Receiver Tank, No.1
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02007 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88481 88481-87002 Glass Sub-Assy, Sight
88710 88710-95013 Tube Assy, Air Conditioner
88712 88712-25050 Hose, Cooler Refrigerant Suction, No.1
88712 88712-95033 Hose, Cooler Refrigerant Suction, No.1
88714 88721-25030 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-95016 Hose, Cooler Refrigerant Liquid, No.1
88715 88715-25070 Tube, Discharge, G
88715 88715-95012 Tube, Discharge, G
88716 88716-25050 Pipe, Cooler Refrigerant Liquid, A
88716 88716-95021 Pipe, Cooler Refrigerant Liquid, A
88716 88716-25070 Pipe, Cooler Refrigerant Liquid, B
88716 88716-95022 Pipe, Cooler Refrigerant Liquid, B
88717 88717-25090 Pipe, Cooler Refrigerant Suction, B
88717 88717-95015 Pipe, Cooler Refrigerant Suction, B
8868895021 88688-95021 Bracket, Cooler Diaphragm
8868895022 88688-95022 Bracket, Cooler Diaphragm
8868895024 88688-95024 Bracket, Cooler Diaphragm
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871812790 88718-12790 Pipe, Cooler Refrigerant Suction, No.2
8871895015 88718-95015 Pipe, Cooler Refrigerant Suction, No.2
8871895023 88718-95023 Pipe, Cooler Refrigerant Suction, No.2
8871895419 88718-95419 Pipe, Cooler Refrigerant Suction, No.2
8871895420 88718-95420 Pipe, Cooler Refrigerant Suction, No.2
9009901225 90099-01225 New Genuine Part
9009901227 90099-01227 New Genuine Part
9009932073 90099-32073 Grommet
9011906126 90119-06126 BOLT
9011906126 90080-11157 Bolt with Washer
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9166640832 91666-40832 New Genuine Part
9166640832 91661-60830 Bolt
9338516016 93385-16016 New Genuine Part
9338516020 93385-16020 New Genuine Part
9338516020 93385-26020 New Genuine Part
9338516025 93385-16025 New Genuine Part
9338518016 93385-18016 New Genuine Part
9338518040 93385-18040 New Genuine Part
