LY61

Toyota TOYOACE-DYNA · 1988 · 4,106 parts · 171 categories

4,106 items

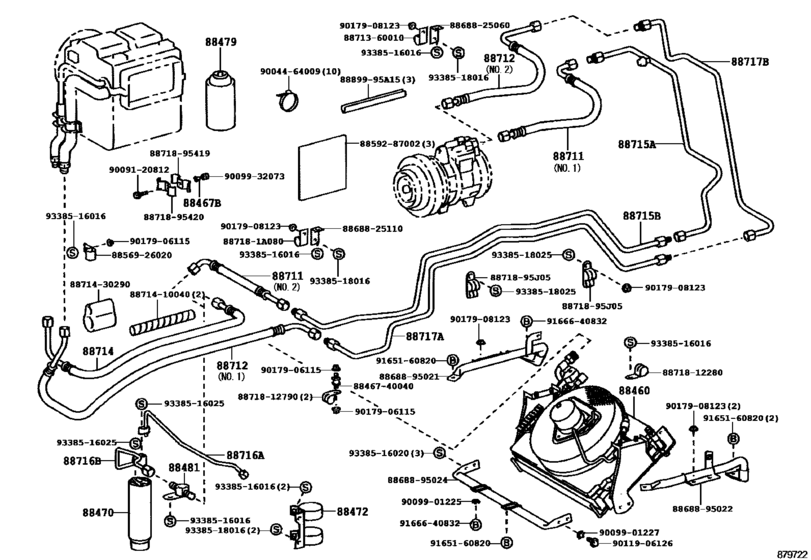

Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309)) 62

#	OEM	Part name
88460	88460-25030	Condenser Assy, Cooler
88460	88460-95015	Condenser Assy, Cooler
88467	88467-22010	Insulator, Cooler Condenser Mounting
88470	88471-16040	Receiver & Dryer Assy, Cooler
88470	88471-16050	Receiver & Dryer Assy, Cooler
88470	88471-20050	Receiver & Dryer Assy, Cooler
88470	88471-34010	Receiver & Dryer Assy, Cooler
88472	88472-95011	Bracket, Receiver Tank, No.1
88479	90986-02004	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479	90986-02007	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479	90986-02008	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88481	88481-87002	Glass Sub-Assy, Sight
88711	88711-25060	Hose, Cooler Refrigerant Discharge, No.1
88711	88711-95043	Hose, Cooler Refrigerant Discharge, No.1
88712	88712-25050	Hose, Cooler Refrigerant Suction, No.1
88712	88712-95033	Hose, Cooler Refrigerant Suction, No.1
88714	88721-25030	Hose, Cooler Refrigerant Liquid, No.1
88714	88721-95016	Hose, Cooler Refrigerant Liquid, No.1
88716	88716-25050	Pipe, Cooler Refrigerant Liquid, A
88716	88716-95021	Pipe, Cooler Refrigerant Liquid, A
88716	88716-25070	Pipe, Cooler Refrigerant Liquid, B
88716	88716-95022	Pipe, Cooler Refrigerant Liquid, B
88717	88717-25090	Pipe, Cooler Refrigerant Suction, B
88717	88717-95015	Pipe, Cooler Refrigerant Suction, B
887181	88718-1A080	Pipe, Cooler Refrigerant Suction, No.2
8871895	88718-95J05	Clamp(For Cooler Refrigerant Pipe), No.2
8889995	88899-95A15	Cover, Evaporator
8846740040	88467-40040	Insulator, Cooler Condenser Mounting
8856926020	88569-26020	Clamp (for Cooler Relay)
8859287002	88592-87002	Packing, Cooling Unit, No.1
8868825060	88688-25060	Bracket, Cooler Diaphragm
8868825110	88688-25110	Bracket, Cooler Diaphragm
8868895021	88688-95021	Bracket, Cooler Diaphragm
8868895022	88688-95022	Bracket, Cooler Diaphragm
8868895024	88688-95024	Bracket, Cooler Diaphragm
8871360010	88713-60010	Hose, Cooler Refrigerant Suction, No.2
8871410040	88714-10040	Insulator, Cooler Refrigerant Pipe, No.1
8871430290	88714-30290	Insulator, Cooler Refrigerant Hose, No.1
8871812280	88718-12280	Clamp(For Cooler Refrigerant Pipe), No.1
8871812790	88718-12790	Pipe, Cooler Refrigerant Suction, No.2
8871895419	88718-95419	Pipe, Cooler Refrigerant Suction, No.2
8871895420	88718-95420	Pipe, Cooler Refrigerant Suction, No.2
9004464009	90044-64009	CLAMP
9009120812	90091-20812	New Genuine Part
9009901225	90099-01225	New Genuine Part
9009901227	90099-01227	New Genuine Part
9009932073	90099-32073	Grommet
9011906126	90119-06126	BOLT
9011906126	90080-11157	Bolt with Washer
9017906115	90179-06115	Nut (For Rear Wiper Arm Setting)
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9166640832	91666-40832	New Genuine Part
9166640832	91661-60830	Bolt
9338516016	93385-16016	New Genuine Part
9338516020	93385-16020	New Genuine Part
9338516020	93385-26020	New Genuine Part
9338516025	93385-16025	New Genuine Part
9338518016	93385-18016	New Genuine Part
9338518025	93385-18025	New Genuine Part
9338518025	90091-20817	New Genuine Part

OEM	Part name	Category
88460-25030	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88460-95015	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88467-22010	Insulator, Cooler Condenser Mounting	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88467-40040	Insulator, Cooler Condenser Mounting	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88471-16040	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88471-16050	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88471-20050	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88471-34010	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88472-95011	Bracket, Receiver Tank, No.1	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88481-87002	Glass Sub-Assy, Sight	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88569-26020	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88592-87002	Packing, Cooling Unit, No.1	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88688-25060	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88688-25110	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88688-95021	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88688-95022	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88688-95024	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88711-25060	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88711-95043	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88712-25050	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88712-95033	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88713-60010	Hose, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88714-10040	Insulator, Cooler Refrigerant Pipe, No.1	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88714-30290	Insulator, Cooler Refrigerant Hose, No.1	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88716-25050	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88716-25070	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88716-95021	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88716-95022	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88717-25090	Pipe, Cooler Refrigerant Suction, B	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88717-95015	Pipe, Cooler Refrigerant Suction, B	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88718-12280	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88718-12790	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88718-1A080	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88718-95419	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88718-95420	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88718-95J05	Clamp(For Cooler Refrigerant Pipe), No.2	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88721-25030	Hose, Cooler Refrigerant Liquid, No.1	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88721-95016	Hose, Cooler Refrigerant Liquid, No.1	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
88899-95A15	Cover, Evaporator	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90044-64009	CLAMP	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90080-11157	Bolt with Washer	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90091-20812	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90091-20817	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90099-01225	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90099-01227	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90099-32073	Grommet	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90119-06126	BOLT	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90179-06115	Nut (For Rear Wiper Arm Setting)	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90179-08123	Nut (For Front Wiper Arm Setting)	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90986-02004	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90986-02007	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
90986-02008	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
91651-60820	Bolt, Radiator Side Support Plate	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
91651-B0820	Bolt, Radiator Side Support Plate	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
91661-60830	Bolt	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
91666-40832	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
93385-16016	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
93385-16020	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
93385-16025	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
93385-18016	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
93385-18025	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
93385-26020	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.1993 - 09.1993] TECS ﾚｲﾄｳｼﾔ (9301-9309))
