LY60

Toyota TOYOACE-DYNA · 1985 · 3,513 parts · 156 categories

3,513 items

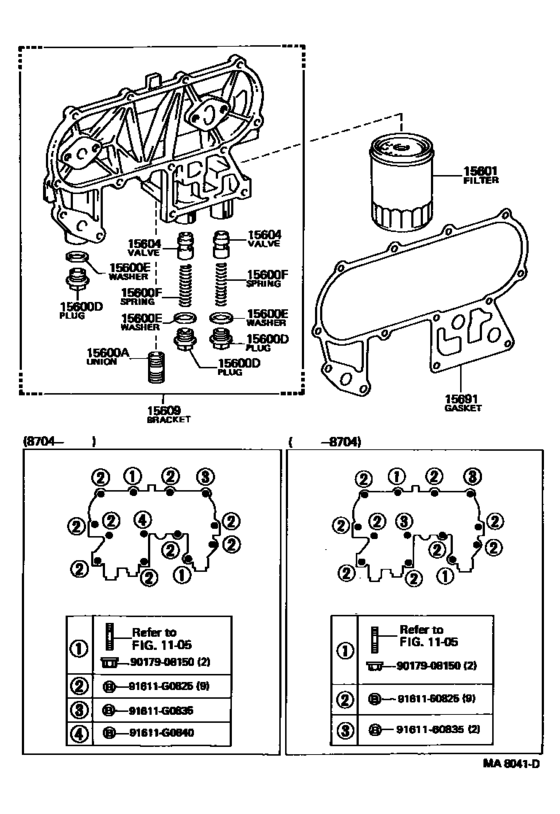

Oil Filter ([08.1987 - 08.1988] (8708-8808)2L) 22

#	OEM	Part name
15600	15116-54010	Screw, Oil Cooler Set
15600	90341-18015	Plug, W/head Straight Screw(For Timing Gear Case)
15600	90430-18011	Washer(For Oil Filter)
15600	90430-18001	Gasket, Straight Screw Plug No.1(For Cylinder Block)
15600	90501-16026	Spring, Compression(For Oil Filter)
15601	15600-41010	Filter Assy, Oil
15601	90915-40002	Filter Assy, Oil
15604	15131-54010	Valve, Oil Pump Relief
15609	15609-54012	Bracket Sub-Assy, Oil Filter
15609	15609-54013	Bracket Sub-Assy, Oil Filter
15691	15692-54020	Gasket, Oil Filter
15691	15692-54040	Gasket, Oil Filter
15691	15692-54030	Gasket, Oil Filter
15691	15692-54050	Gasket, Oil Filter
91611	91611-G0825	Bolt(for Clutch Release Cylinder Setting)
91611	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
91611	91611-G0835	Bolt(For Clutch Release Cylinder Setting)
91611	91611-60835	Bolt(For Clutch Release Cylinder Setting)
91611	91611-G0840	New Genuine Part
91611	91611-60840	BOLT
9017908150	90179-08150	NUT
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)

OEM	Part name	Category
15116-54010	Screw, Oil Cooler Set	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
15131-54010	Valve, Oil Pump Relief	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
15600-41010	Filter Assy, Oil	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
15609-54012	Bracket Sub-Assy, Oil Filter	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
15609-54013	Bracket Sub-Assy, Oil Filter	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
15692-54020	Gasket, Oil Filter	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
15692-54030	Gasket, Oil Filter	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
15692-54040	Gasket, Oil Filter	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
15692-54050	Gasket, Oil Filter	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
90179-08150	NUT	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
90341-18015	Plug, W/head Straight Screw(For Timing Gear Case)	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
90430-18001	Gasket, Straight Screw Plug No.1(For Cylinder Block)	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
90430-18011	Washer(For Oil Filter)	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
90501-16026	Spring, Compression(For Oil Filter)	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
90915-40002	Filter Assy, Oil	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
91611-60840	BOLT	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
91611-G0825	Bolt(for Clutch Release Cylinder Setting)	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
91611-G0835	Bolt(For Clutch Release Cylinder Setting)	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
91611-G0840	New Genuine Part	Oil Filter ([08.1987 - 08.1988] (8708-8808)2L)
