Search › Model › LY60

LY60

Toyota TOYOACE-DYNA · 1985 · 3,513 parts · 156 categories

3,513 items

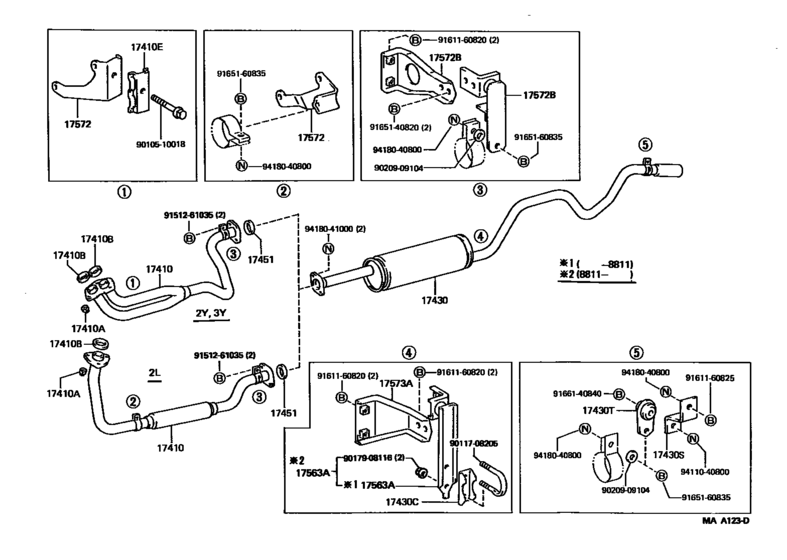

Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y) 33

#	OEM	Part name
17410	17410-54630	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06004	Gasket(For Manifold Extension)
17410	90917-06039	Gasket, Exhaust Pipe
17430	17430-54710	Pipe Assy, Exhaust, Tail
17430	17430-54711	Pipe Assy, Exhaust, Tail
17430	90917-04021	Clamp No.1, Exhaust Pipe Front (For Front)
17430	17574-54050	Bracket, Exhaust Tail Pipe (For Rear)
17430	90917-08009	Cushion, Exhaust Tail Pipe (For Rear)
17563	17563-54060	Bracket, Exhaust Tail Pipe(For Front)
17563	17563-59015	Support, Exhaust Pipe, No.3
17572	17571-54280	Bracket, Exhaust Pipe Front (For Front)
17572	17562-54140	Bracket, Exhaust Pipe Front (For Rear)
17572	17572-54140	Bracket, Exhaust Pipe Front (For Rear)
17573	17573-54050	Bracket, Exhaust Tail Pipe(For Front)
9010510018	90105-10018	Bolt Or Ring, Exhaust Pipe Front (For Front)
9011708205	90117-08205	Bolt Or Ring, Exhaust Pipe Front (For Front)
9017908116	90179-08116	New Genuine Part
9020909104	90209-09104	New Genuine Part
9151261035	91512-61035	Bolt(For Transaxle Case & Engine Setting)
9151261035	90080-10204	New Genuine Part
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9165140820	91651-40820	Bolt
9165160835	91651-60835	Bolt(For Front Suspension Control Accumulator)
9166140840	91661-40840	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9418040800	94180-40800	NUT
9418041000	94180-41000	Nut

OEM	Part name	Category
17410-54630	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
17430-54710	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
17430-54711	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
17562-54140	Bracket, Exhaust Pipe Front (For Rear)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
17563-54060	Bracket, Exhaust Tail Pipe(For Front)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
17563-59015	Support, Exhaust Pipe, No.3	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
17571-54280	Bracket, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
17572-54140	Bracket, Exhaust Pipe Front (For Rear)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
17573-54050	Bracket, Exhaust Tail Pipe(For Front)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
17574-54050	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
90080-10204	New Genuine Part	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
90105-10018	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
90117-08205	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
90179-08116	New Genuine Part	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
90209-09104	New Genuine Part	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
90917-04021	Clamp No.1, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
90917-06004	Gasket(For Manifold Extension)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
90917-06039	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
90917-08009	Cushion, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
91512-61035	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
91611-60820	Bolt(For Transaxle & Engine Setting)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
91611-G0820	Bolt	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
91651-40820	Bolt	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
91651-60835	Bolt(For Front Suspension Control Accumulator)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
91661-40840	New Genuine Part	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
94110-40800	Nut(For Steering Damper)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
94130-00802	Nut, No.1 (For Center Support Bearing)	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
94180-40800	NUT	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
94180-41000	Nut	Exhaust Pipe ([08.1987 - 08.1988] (8708-8808) ; (8808-9008)2Y,3Y)
