LY280

Toyota DYNA-TOYOACE · 2001 · 3,903 parts · 200 categories

3,903 items

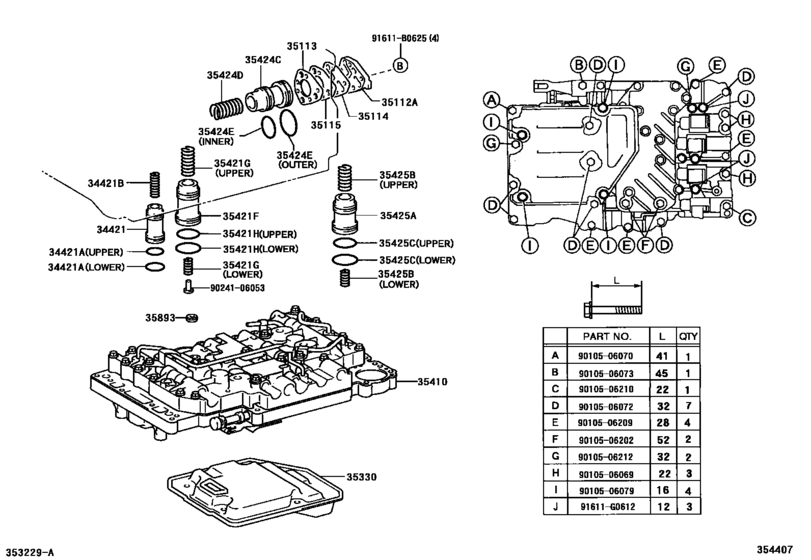

Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM) 43

#	OEM	Part name
34421	34421-37010	Piston, Overdrive Brake Accumulator
34421	90301-26003	Ring, O (For Overdrive Brake Accumulator Piston)
34421	90301-29003	Ring, O (For Overdrive Brake Accumulator Piston)
34421	90501-31020	Spring (For Overdrive Brake Accumulator Piston)
35112	35112-60010	Cover, Front Clutch Accumulator
35113	35113-60020	Gasket, Front Clutch Accumlator, No.2
35114	35114-60020	Gasket, Front Clutch Accumlator, No.1
35115	35115-60010	Plate, Front Clutch Accumulator
35330	35330-36010	Strainer Assy, Valve Body Oil
35410	35410-25080	Body Assy, Transmission Valve
35421	35402-60020	Piston, Accumulator, No.2
35421	90501-22050	Spring, Compression (For Accumulator Piston No.2)
35421	90501-38008	Spring, Compression (For Accumulator Piston No.2)
35421	90301-37004	Ring (For Accumulator Piston No.2)
35424	35424-60020	Piston, C-1 Accumulator
35424	90501-22032	Spring, Compression (For C-1 Accumulator Piston)
35424	90301-22003	Ring, O (For C-1 Accumulator Piston)
35424	90301-28003	Ring, O (For C-1 Accumulator Piston)
35425	35405-60060	Piston, C-2 Accumulator
35425	90501-18113	Spring (For Overdrive Brake Accumulator Piston)
35425	90501-30025	Spring, Compression (For C-2 Accumulator Piston)
35425	90301-33006	Ring, O (For C-2 Accumulator Piston)
35517	35517-37010	Plate, Transmission Wire Lock
35893	35893-36010	Gasket, Center Support Apply
82125	82125-36010	Wire, Transmission
82125	96721-24018	Ring, O
85420	85420-60050	Solenoid Assy, Transmission
85420	90301-06004	Ring, O No.3(For Transmission Solenoid)
85420	85420-60060	Solenoid Assy, Transmission
85420	85420-60070	Solenoid Assy, Transmission
91611	91611-B0625	Bolt (For Automatic Transmission Oil Pan)
91611	91611-G0612	Bolt
91611	91611-B0616	Bolt(For Transaxle Case Receiver)
9010506069	90105-06069	Bolt (For Governor Body)
9010506070	90105-06070	New Genuine Part
9010506072	90105-06072	New Genuine Part
9010506073	90105-06073	New Genuine Part
9010506079	90105-06079	Bolt
9010506202	90105-06202	Bolt(For Cylinder Head Cover)
9010506209	90105-06209	New Genuine Part
9010506210	90105-06210	New Genuine Part
9010506212	90105-06212	New Genuine Part
9024106053	90241-06053	New Genuine Part

OEM	Part name	Category
34421-37010	Piston, Overdrive Brake Accumulator	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
35112-60010	Cover, Front Clutch Accumulator	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
35113-60020	Gasket, Front Clutch Accumlator, No.2	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
35114-60020	Gasket, Front Clutch Accumlator, No.1	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
35115-60010	Plate, Front Clutch Accumulator	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
35330-36010	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
35402-60020	Piston, Accumulator, No.2	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
35405-60060	Piston, C-2 Accumulator	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
35410-25080	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
35424-60020	Piston, C-1 Accumulator	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
35517-37010	Plate, Transmission Wire Lock	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
35893-36010	Gasket, Center Support Apply	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
82125-36010	Wire, Transmission	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
85420-60050	Solenoid Assy, Transmission	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
85420-60060	Solenoid Assy, Transmission	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
85420-60070	Solenoid Assy, Transmission	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90105-06069	Bolt (For Governor Body)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90105-06070	New Genuine Part	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90105-06072	New Genuine Part	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90105-06073	New Genuine Part	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90105-06079	Bolt	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90105-06202	Bolt(For Cylinder Head Cover)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90105-06209	New Genuine Part	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90105-06210	New Genuine Part	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90105-06212	New Genuine Part	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90241-06053	New Genuine Part	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90301-06004	Ring, O No.3(For Transmission Solenoid)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90301-22003	Ring, O (For C-1 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90301-26003	Ring, O (For Overdrive Brake Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90301-28003	Ring, O (For C-1 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90301-29003	Ring, O (For Overdrive Brake Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90301-33006	Ring, O (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90301-37004	Ring (For Accumulator Piston No.2)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90501-18113	Spring (For Overdrive Brake Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90501-22032	Spring, Compression (For C-1 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90501-22050	Spring, Compression (For Accumulator Piston No.2)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90501-30025	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90501-31020	Spring (For Overdrive Brake Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
90501-38008	Spring, Compression (For Accumulator Piston No.2)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
91611-B0616	Bolt(For Transaxle Case Receiver)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
91611-B0625	Bolt (For Automatic Transmission Oil Pan)	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
91611-G0612	Bolt	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
96721-24018	Ring, O	Valve Body & Oil Strainer (Atm) ([07.2001 - ] A443E,A443F (0107- )LY230,280,RZY231,281..TB..ATM)
