| 12109-33010 |
Hose Assy, Vacuum Transmitting, No.2 - WATER DRAIN |

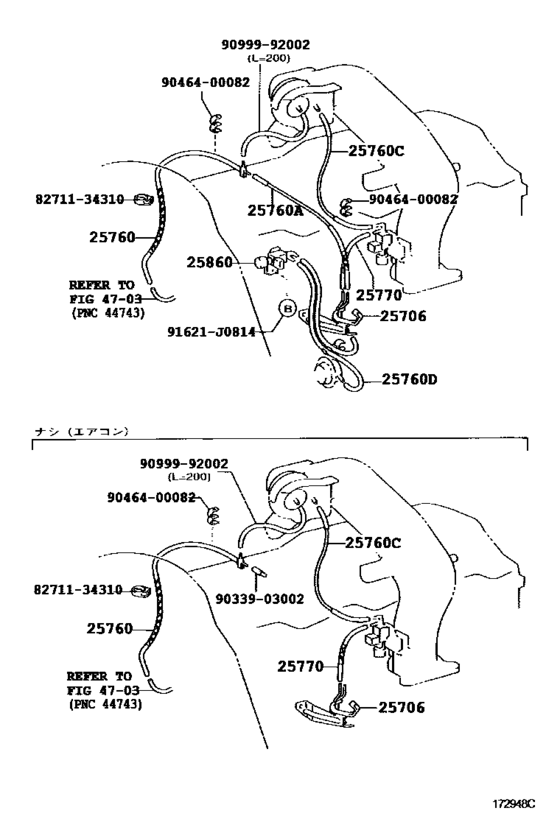

Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 25706-54080 |
Pipe Sub-Assy, Vacuum Transmitting, No.1 |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 25760-54270 |
Hose Assy, Vacuum Transmitting |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 25760-54280 |
Hose Assy, Vacuum Transmitting |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 25760-54290 |
Hose Assy, Vacuum Transmitting, No.3 |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 25760-54310 |
Hose Assy, Vacuum Transmitting, No.4 |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 25760-54360 |
Hose Assy, Vacuum Transmitting, No.2 |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 25860-54300 |
Valve Assy, Vacuum Switching, No.1 |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 82711-34310 |
Clamp(For Hood Lock Control Cable) |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 90339-03002 |
PLUG |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 90464-00082 |
Clamp(For Resistive Cord) |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 90999-92002 |
Air Hose (300 mm) |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
| 91621-J0814 |
Bolt (For Transmission Control Cable Bracket) |
Vacuum Piping ([07.2001 - ] (0107- )5L..LY270,280,290) |
