LY280

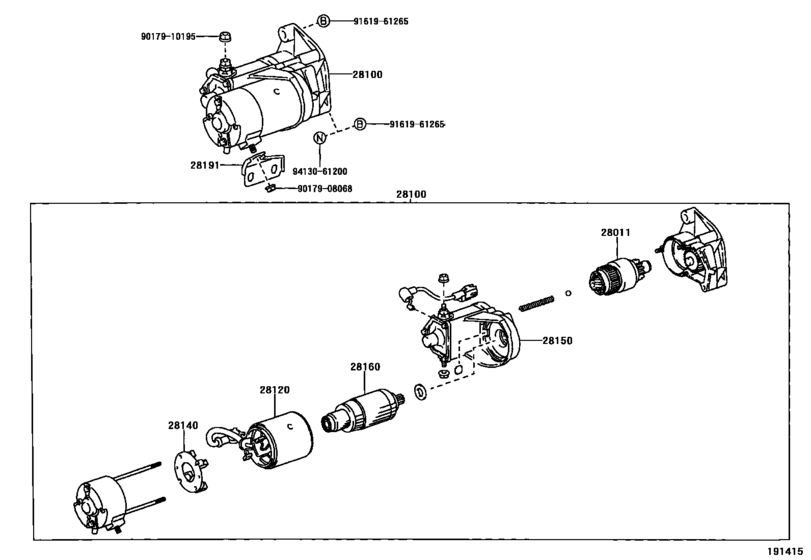

Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) 11
| # | OEM | Part name |
|---|---|---|
| 28011 | 28011-54010 | Clutch Sub-Assy, Starter |
| 28100 | 28100-54430 | Starter Assy |
| 28120 | 28120-56081 | Yoke Assy, Starter |
| 28140 | 28140-77090 | Holder Assy, Starter Brush |
| 28150 | 28150-54320 | Switch Assy, Magnet Starter |
| 28160 | 28160-54160 | Armature Assy, Starter |
| 28191 | 28191-54010 | Stay, Starter |
| 9017908068 | 90179-08068 | NUT |
| 9017910195 | 90179-10195 | NUT WWASHER |
| 9161961265 | 91619-61265 | Bolt(For Transaxle & Engine Setting) |
| 9413061200 | 94130-61200 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 28011-54010 | Clutch Sub-Assy, Starter | Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) |
| 28100-54430 | Starter Assy | Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) |
| 28120-56081 | Yoke Assy, Starter | Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) |
| 28140-77090 | Holder Assy, Starter Brush | Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) |
| 28150-54320 | Switch Assy, Magnet Starter | Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) |
| 28160-54160 | Armature Assy, Starter | Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) |
| 28191-54010 | Stay, Starter | Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) |
| 90179-08068 | NUT | Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) |
| 90179-10195 | NUT WWASHER | Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) |
| 91619-61265 | Bolt(For Transaxle & Engine Setting) | Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) |
| 94130-61200 | Nut | Starter ([07.2001 - ] 12V 2.7KW (0107- )5L) |
