Search › Model › LY280

LY280

Toyota DYNA-TOYOACE · 2001 · 3,903 parts · 200 categories

3,903 items

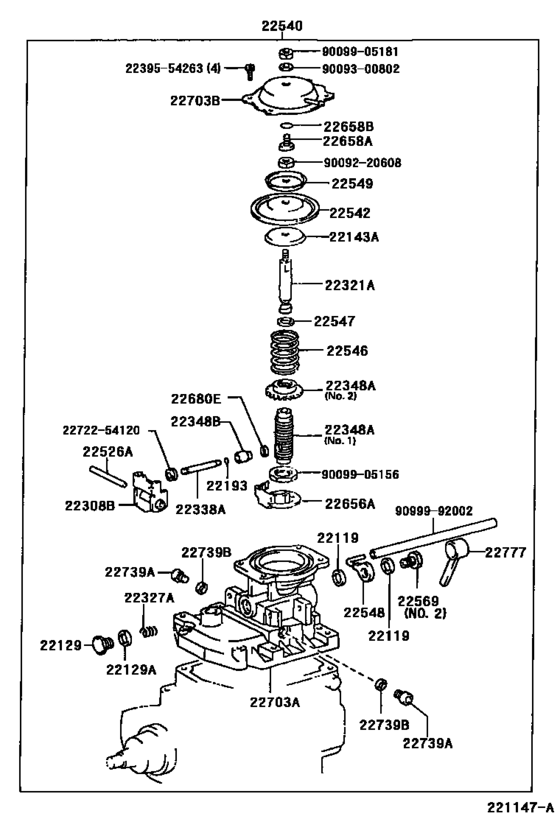

Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290) 58

#	OEM	Part name
22119	90201-12109	Washer, Air Bleeder Nipple
22129	22129-55110	Plug, Screw
22129	22149-54800	Washer, Air Bleeder Nipple
22143	22143-54260	Seat, Spring Upper
22193	22193-55031	Ring, O(For Lever Connecting Pin)
22308	22308-5B650	Lever Sub-Assy, Control
22321	22321-5D280	Rod, Push
22327	22327-55030	Spring(For Bellows)
22338	22338-54120	Pin, Lever Connecting
22348	22348-54490	Bushing, Guide
22348	22348-64360	Bushing, Guide
22348	22348-54121	Bushing, Guide
22526	22526-54120	Pin, Lever Support
22540	22540-5D290	Compensator Sub-Assy, Boost
22542	22542-54260	Diaphragm(For Boost Compensator)
22546	22546-54260	Spring, Boost Compensator
22546	22546-54261	Spring, Boost Compensator
22546	22546-54490	Spring, Boost Compensator
22546	22546-54491	Spring, Boost Compensator
22546	22546-54492	Spring, Boost Compensator
22546	22546-67040	Spring, Boost Compensator
22547	22547-54260	Shim, Boost Compensator
22547	22547-54261	Shim, Boost Compensator
22547	22547-54262	Shim, Boost Compensator
22547	22547-54263	Shim, Boost Compensator
22547	22547-54264	Shim, Boost Compensator
22547	22547-54265	Shim, Boost Compensator
22547	22547-54266	Shim, Boost Compensator
22547	22547-54267	Shim, Boost Compensator
22547	22547-54268	Shim, Boost Compensator
22547	22547-54490	Shim, Boost Compensator
22547	22547-54491	Shim, Boost Compensator
22547	22547-54492	Shim, Boost Compensator
22547	22547-54493	Shim, Boost Compensator
22547	22547-54494	Shim, Boost Compensator
22547	22547-64360	Shim, Boost Compensator
22547	22547-64361	Shim, Boost Compensator
22548	22548-5B850	Nipple, Swivel
22549	22549-17140	Seat, Spring Upper, No.2
22569	22569-5B320	Screw, Overflow
22569	22569-5B850	Screw, Overflow
22656	22656-54490	Clip, Timer
22658	22658-64518	Stopper, Timer
22658	22193-54561	Ring, O(For Lever Connecting Pin)
22680	90099-01473	Washer(For Guide Bushing)
22703	22703-64361	Cover Sub-Assy, Governor
22703	22703-5D280	Cover, Governor
22739	22739-54120	Bolt, Governor Link Support
22739	22149-6D450	Gasket, Delivery Valve
22777	22777-54130	Cap, Rubber(For Bellows)
2239554263	22395-54263	Bolt, Socket(for Injection Pump Governor Cover)
2272254120	22722-54120	Nut, Governor Shaft Rock
9009220608	90092-20608	New Genuine Part
9009300802	90093-00802	Washer, Plate(For Connecting Pin)
9009905156	90099-05156	New Genuine Part
9009905181	90099-05181	New Genuine Part
9009905181	90099-05252	NUT HEXAGON
9099992002	90999-92002	Air Hose (300 mm)

OEM	Part name	Category
22129-55110	Plug, Screw	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22143-54260	Seat, Spring Upper	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22149-54800	Washer, Air Bleeder Nipple	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22149-6D450	Gasket, Delivery Valve	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22193-54561	Ring, O(For Lever Connecting Pin)	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22193-55031	Ring, O(For Lever Connecting Pin)	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22308-5B650	Lever Sub-Assy, Control	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22321-5D280	Rod, Push	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22327-55030	Spring(For Bellows)	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22338-54120	Pin, Lever Connecting	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22348-54121	Bushing, Guide	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22348-54490	Bushing, Guide	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22348-64360	Bushing, Guide	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22395-54263	Bolt, Socket(for Injection Pump Governor Cover)	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22526-54120	Pin, Lever Support	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22540-5D290	Compensator Sub-Assy, Boost	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22542-54260	Diaphragm(For Boost Compensator)	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22546-54260	Spring, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22546-54261	Spring, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22546-54490	Spring, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22546-54491	Spring, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22546-54492	Spring, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22546-67040	Spring, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54260	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54261	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54262	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54263	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54264	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54265	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54266	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54267	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54268	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54490	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54491	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54492	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54493	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-54494	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-64360	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22547-64361	Shim, Boost Compensator	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22548-5B850	Nipple, Swivel	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22549-17140	Seat, Spring Upper, No.2	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22569-5B320	Screw, Overflow	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22569-5B850	Screw, Overflow	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22656-54490	Clip, Timer	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22658-64518	Stopper, Timer	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22703-5D280	Cover, Governor	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22703-64361	Cover Sub-Assy, Governor	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22722-54120	Nut, Governor Shaft Rock	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22739-54120	Bolt, Governor Link Support	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
22777-54130	Cap, Rubber(For Bellows)	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
90092-20608	New Genuine Part	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
90093-00802	Washer, Plate(For Connecting Pin)	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
90099-01473	Washer(For Guide Bushing)	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
90099-05156	New Genuine Part	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
90099-05181	New Genuine Part	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
90099-05252	NUT HEXAGON	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
90201-12109	Washer, Air Bleeder Nipple	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
90999-92002	Air Hose (300 mm)	Injection Pump Body ([07.2001 - ] (0107- )5L..LY270,280,290)
