LY280

Toyota DYNA-TOYOACE · 2001 · 3,903 parts · 200 categories
LY280 ×

← Back to categories

3,903 items

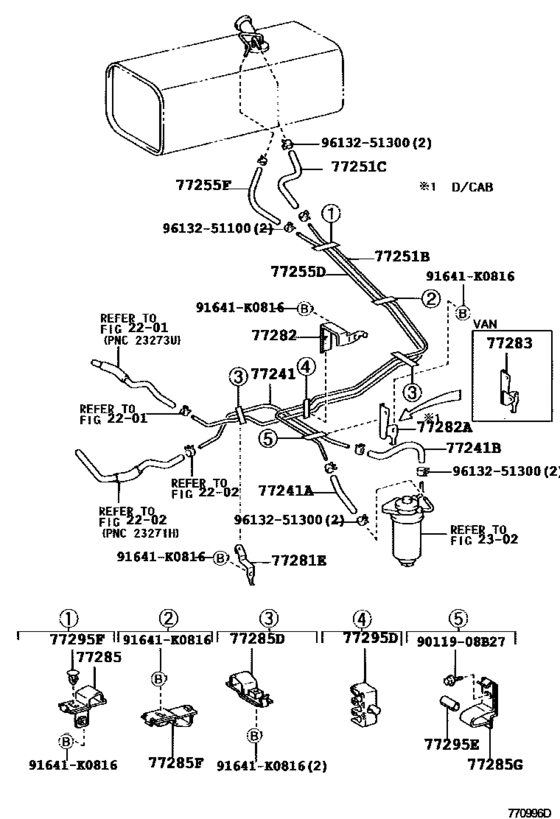

Fuel Tank & Tube ([07.2001 - 08.2004] ﾌｭｰｴﾙ ﾁｭｰﾌﾞ (0107-0408)DSL) 19
#OEMPart name
77241 77251-25370 Tube, Fuel Main, No.1
77241 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77251 77252-25090 Tube, Fuel Main
77255 77255-25220 Tube, Fuel Return
77255 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77255 95337-06020 Hose, Differential Pressure Control
77281 77281-25070 Bracket, Fuel Main Tube, No.1
77282 77281-25080 Bracket, Fuel Main Tube, No.2
77285 77281-25030 Bracket, Fuel Main Tube, No.1
77285 77285-25010 Clamp, Fuel Tube, No.1
77285 77285-25020 Clamp, Fuel Tube, No.1
77285 77285-25030 Clamp, Fuel Tube, No.1
77295 77295-25020 Grommet, Fuel Tube
77295 77295-25030 Grommet, Fuel Tube
77295 77295-25040 Grommet, Fuel Hose
91641 91641-K0816 BOLT WWASHER
9011908 90119-08B27 New Genuine Part
9613251100 96132-51100 Clip (For Hose)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
Source
Public OEM parts-catalog data
Variants
2 / 30
Category
200
Collected
2026-08-03
