LY240

Toyota DYNA-TOYOACE · 2001 · 4,214 parts · 210 categories

← Back to categories

4,214 items

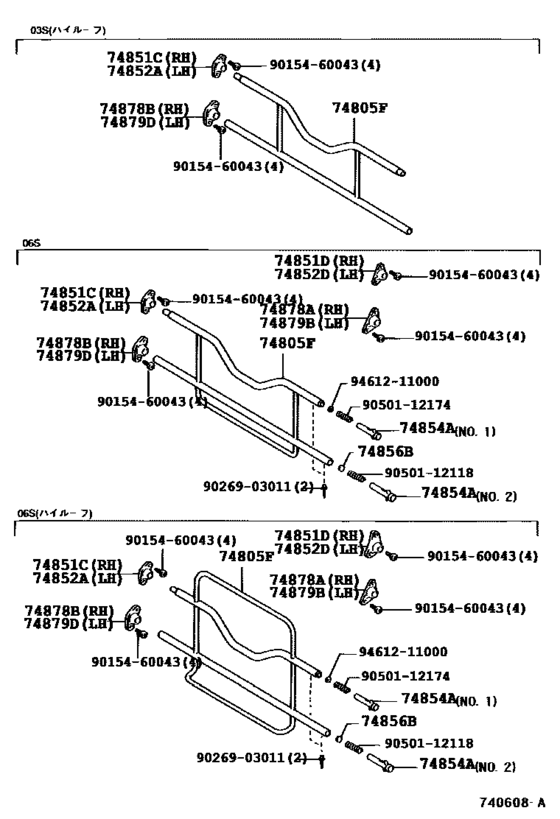

Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290) 17

#	OEM	Part name
74805	74805-37130	Bar Sub-Assy, Separator, A
74805	74805-37190	Bar Sub-Assy, Separator, A
74805	74805-37120	Bar Sub-Assy, Separator, A
74851	74851-95J04-B0	Bracket, Separator, Upper Rh
74851	74851-95J01-B0	Bracket, Separator Bar, Upper Rh
74852	74852-95J04-B0	Bracket, Separator, Upper Lh
74852	74852-95J00-B0	Bracket, Separator, Rh
74854	74854-95J06-B0	Stop, Separator
74854	74854-95J07-B0	Stop, Separator
74856	74856-95A00	Plate, Spring Set
74878	74867-95J00-B0	Bracket, Separator Bar, No.4
74878	74879-95J01-B0	Bracket, Separator Bar, Lh
9015460043	90154-60043	SCREW CROSSRECESS
9026903011	90269-03011	New Genuine Part
9050112118	90501-12118	New Genuine Part
9050112174	90501-12174	New Genuine Part
9461211000	94612-11000	Plate, Spring Set

OEM	Part name	Category
74805-37120	Bar Sub-Assy, Separator, A	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
74805-37130	Bar Sub-Assy, Separator, A	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
74805-37190	Bar Sub-Assy, Separator, A	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
74851-95J01-B0	Bracket, Separator Bar, Upper Rh	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
74851-95J04-B0	Bracket, Separator, Upper Rh	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
74852-95J00-B0	Bracket, Separator, Rh	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
74852-95J04-B0	Bracket, Separator, Upper Lh	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
74854-95J06-B0	Stop, Separator	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
74854-95J07-B0	Stop, Separator	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
74856-95A00	Plate, Spring Set	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
74867-95J00-B0	Bracket, Separator Bar, No.4	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
74879-95J01-B0	Bracket, Separator Bar, Lh	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
90154-60043	SCREW CROSSRECESS	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
90269-03011	New Genuine Part	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
90501-12118	New Genuine Part	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
90501-12174	New Genuine Part	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
94612-11000	Plate, Spring Set	Separator & Separator Curtain ([07.2001 - 08.2004] (0107-0408)LY240,290 ; (0408- )KDY24#,290)
