LY240

Toyota DYNA-TOYOACE · 2001 · 4,214 parts · 210 categories
LY240 ×

← Back to categories

4,214 items

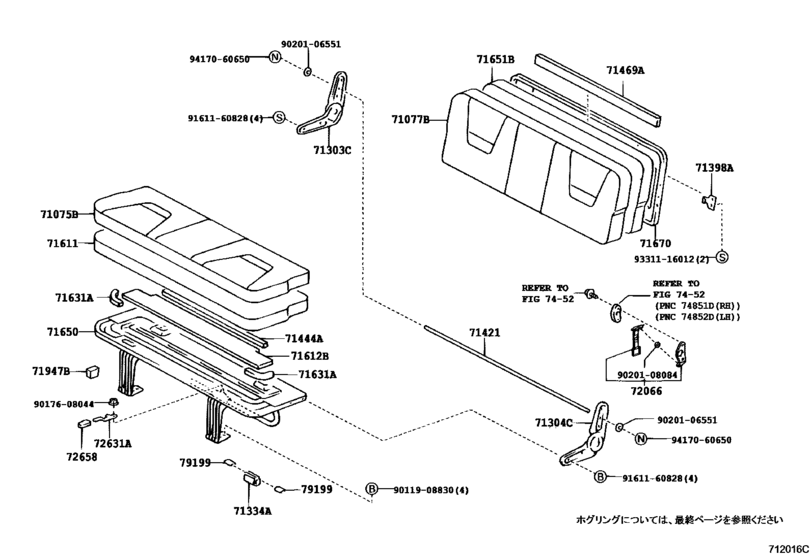

Seat & Seat Track ([07.2001 - ] ﾘﾔ ｵﾘﾀﾀﾐ ｼ-ﾄ (0107- )KDY24#,290,LY240,290) 34
#OEMPart name
71075 79011-25010-B1 Cover, Rear Seat Cushion (For Bench Type)
71075 79011-25020-B0 Cover, Rear Seat Cushion (For Bench Type)
71075 79011-37070-B0 Cover, Rear Seat Cushion (For Bench Type)
71075 79011-37090-B0 Cover, Rear Seat Cushion (For Bench Type)
71077 79013-25010-B1 Cover, Rear Seat Back (For Bench Type)
71077 79013-25020-B0 Cover, Rear Seat Back (For Bench Type)
71077 79013-37070-B0 Cover, Rear Seat Back (For Bench Type)
71077 79013-37110-B0 Cover, Rear Seat Back (For Bench Type)
71303 71303-37010 Hinge Sub-Assy, Rear Seat Back, Rh
71304 71304-37010 Hinge Sub-Assy, Rear Seat Back, Lh
71334 71334-37040 Stopper, Rear Seat Leg
71398 71266-37010 Holder, Rear Seat Back
71421 71421-95A00 Bar, Rear Seat Back Equalizing
71444 71444-95A02 Pad, Rear Seat Cushion, Rear
71469 71469-95A00 Pad, Rear Seat Back
71611 71611-37040 Pad, Rear Seat Cushion
71612 71612-37010 Pad, Rear Seat Cushion, B
71631 71631-95A00 Pad, Rear Seat Cushion Corner
71650 71210-25010 Spring Assy, Rear Seat Cushion
71651 71651-37040 Pad, Rear Seat Back(For Bench Type)
71670 71202-92600 Panel, Rear Seat Back
71947 71947-95663 Bumper, Passenger Seat Cushion
72066 72066-95J02 Belt Sub-Assy, Rear Seat Hook, Lh
72631 72631-26010 Handle, Rear Seat Leg Stopper
72658 72639-95J00-B0 Knob, Rear Seat Lock
79199 79199-95J00 Holder, No.1 Seat Leg Stopper
9011908830 90119-08830 Bolt(For Oil Receiver Pipe)
9011908830 47327-60232 Tube, Rear Brake, No.7
9017608044 90176-08044 NUT
9020106551 90201-06551 New Genuine Part
9020108084 90201-08084 New Genuine Part
9161160828 91611-60828 Bolt(For Clutch Release Cylinder Setting)
9331116012 93311-16012 Screw, Rear Axle Bearing Lock Nut
9417060650 94170-60650 New Genuine Part
