Search › Model › LY211
LY211

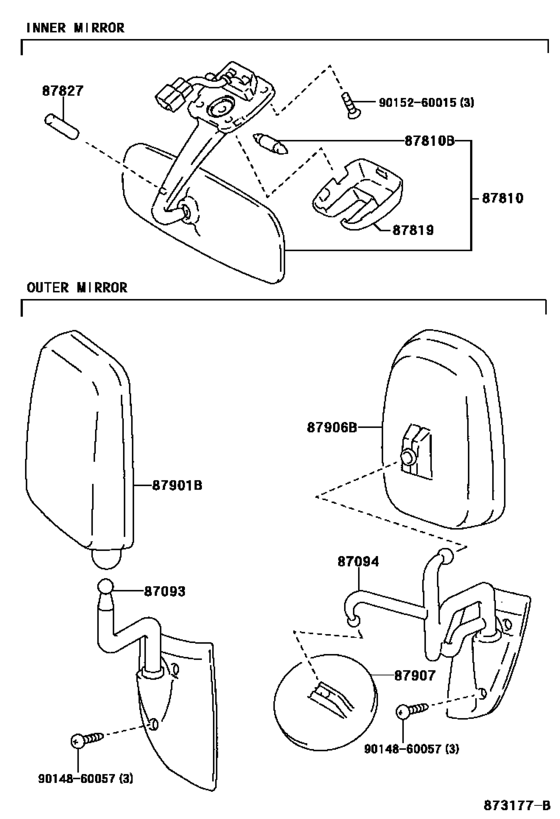

Mirror ([05.1995 - ] (9505- )) 12
| # | OEM | Part name |
|---|---|---|
| 87093 | 87093-37130 | Stay Sub-Assy, Outer Rear View Mirror, Upper Rh |
| 87094 | 87094-37280 | Stay Sub-Assy, Outer Rear View Mirror, Upper Lh |
| 87810 | 87810-25010-C0 | Mirror Assy, Inner Rear View |
| 87810 | 90981-11027 | Bulb(For Map Lamp) |
| 87819 | 87819-25010 | Lens, Inner Rr View Mirror Room Lamp |
| 87827 | 87828-23010 | Absorber, Inner Rear View Mirror |
| 87827 | 87828-30010 | Absorber, Inner Rear View Mirror |
| 87901 | 87901-95417 | Mirror Sub-Assy, Outer Rear View, Rh |
| 9014860057 | 90148-60057 | Screw |
| 9015260015 | 90152-60015 | SCREW CROSSRECESS |
| 9356815016 | 93568-15016 | Sensor, Automatic Light Control |
| 9356815016 | 93568-55016 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 87093-37130 | Stay Sub-Assy, Outer Rear View Mirror, Upper Rh | Mirror ([05.1995 - ] (9505- )) |
| 87094-37280 | Stay Sub-Assy, Outer Rear View Mirror, Upper Lh | Mirror ([05.1995 - ] (9505- )) |
| 87810-25010-C0 | Mirror Assy, Inner Rear View | Mirror ([05.1995 - ] (9505- )) |
| 87819-25010 | Lens, Inner Rr View Mirror Room Lamp | Mirror ([05.1995 - ] (9505- )) |
| 87828-23010 | Absorber, Inner Rear View Mirror | Mirror ([05.1995 - ] (9505- )) |
| 87828-30010 | Absorber, Inner Rear View Mirror | Mirror ([05.1995 - ] (9505- )) |
| 87901-95417 | Mirror Sub-Assy, Outer Rear View, Rh | Mirror ([05.1995 - ] (9505- )) |
| 90148-60057 | Screw | Mirror ([05.1995 - ] (9505- )) |
| 90152-60015 | SCREW CROSSRECESS | Mirror ([05.1995 - ] (9505- )) |
| 90981-11027 | Bulb(For Map Lamp) | Mirror ([05.1995 - ] (9505- )) |
| 93568-15016 | Sensor, Automatic Light Control | Mirror ([05.1995 - ] (9505- )) |
| 93568-55016 | Screw | Mirror ([05.1995 - ] (9505- )) |
