LY211

Toyota DYNA-150-TOYOACE-G15 · 1995 · 3,181 parts · 162 categories

3,181 items

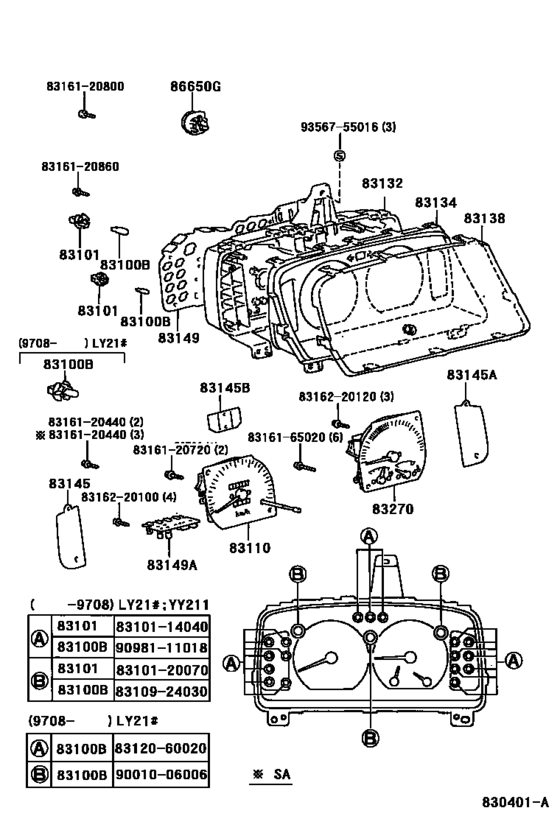

Meter ([05.1995 - ] W(TACHOMETER) (9505- )) 27

#	OEM	Part name
83100	83109-24030	Bulb, Combination Meter, No.1
83100	83120-60020	Bulb, Combination Meter, No.1
83100	90010-06006	Bulb, Combination Meter, No.1
83100	90981-11018	Bulb, Position Indicator Lamp
83101	83101-14040	Socket, Indicator Lamp
83101	83101-20070	Socket Sub-Assy, Combination Meter Bulb
83110	83110-25170	Speedometer Assy
83110	83110-25171	Speedometer Assy
83132	83132-37020	Case, Combination Meter
83134	83134-37020	Cover, Combination Meter, No.1
83138	83137-37020	Glass, Speedometer
83145	83146-37380	Lens, Meter, No.1
83145	83146-37200	Lens, Meter, No.2
83145	83146-37140	Lens, Meter, No.3
83149	83149-37300	Plate, Meter Circuit
83149	83149-37620	Plate, Meter Circuit
83149	83149-26860	Plate, Meter Circuit
83270	83243-37320	Tachometer Assy, Engine
8316120440	83161-20440	Case, Combination Meter Mirror, No.1
8316120720	83161-20720	Case, Combination Meter Mirror, No.1
8316120800	83161-20800	Case, Combination Meter Mirror, No.1
8316120860	83161-20860	Case, Combination Meter Mirror, No.1
8316165020	83161-65020	Case, Combination Meter Mirror, No.1
8316220100	83162-20100	Case, Combination Meter Mirror, No.2
8316220120	83162-20120	Case, Combination Meter Mirror, No.2
9356755016	93567-55016	Screw
9356755016	93568-55016	Screw

OEM	Part name	Category
83101-14040	Socket, Indicator Lamp	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83101-20070	Socket Sub-Assy, Combination Meter Bulb	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83109-24030	Bulb, Combination Meter, No.1	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83110-25170	Speedometer Assy	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83110-25171	Speedometer Assy	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83120-60020	Bulb, Combination Meter, No.1	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83132-37020	Case, Combination Meter	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83134-37020	Cover, Combination Meter, No.1	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83137-37020	Glass, Speedometer	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83146-37140	Lens, Meter, No.3	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83146-37200	Lens, Meter, No.2	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83146-37380	Lens, Meter, No.1	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83149-26860	Plate, Meter Circuit	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83149-37300	Plate, Meter Circuit	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83149-37620	Plate, Meter Circuit	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83161-20440	Case, Combination Meter Mirror, No.1	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83161-20720	Case, Combination Meter Mirror, No.1	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83161-20800	Case, Combination Meter Mirror, No.1	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83161-20860	Case, Combination Meter Mirror, No.1	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83161-65020	Case, Combination Meter Mirror, No.1	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83162-20100	Case, Combination Meter Mirror, No.2	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83162-20120	Case, Combination Meter Mirror, No.2	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
83243-37320	Tachometer Assy, Engine	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
90010-06006	Bulb, Combination Meter, No.1	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
90981-11018	Bulb, Position Indicator Lamp	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
93567-55016	Screw	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
93568-55016	Screw	Meter ([05.1995 - ] W(TACHOMETER) (9505- ))
