LY211

Toyota DYNA-150-TOYOACE-G15 · 1995 · 3,181 parts · 162 categories

← Back to categories

3,181 items

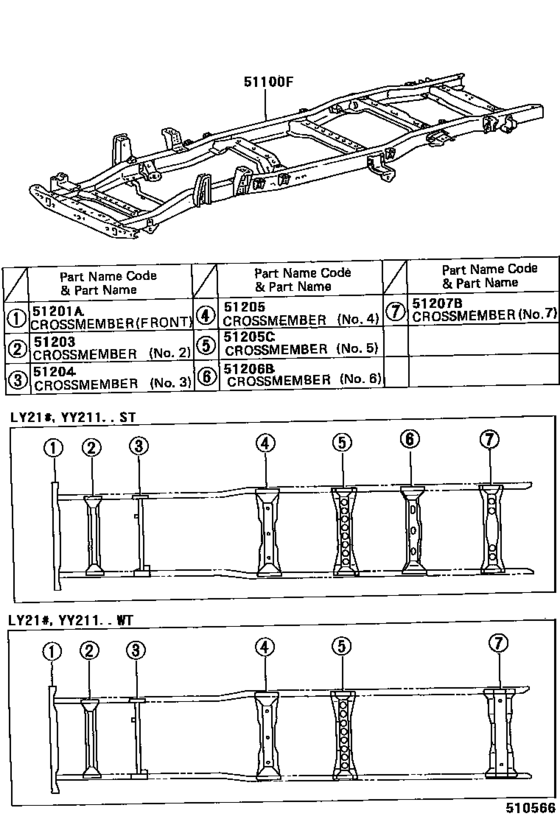

Frame ([05.1995 - ] (9505- )) 19

#	OEM	Part name
51100	51002-25752	Frame Sub-Assy
51201	51211-25091	Crossmember Sub-Assy, Frame, Front
51203	51202-25131	Crossmember Sub-Assy, Frame, No.2
51204	51203-25111	Crossmember Sub-Assy, Frame, No.3
51205	51204-25061	Crossmember Sub-Assy, Frame, No.4
51205	51205-25051	Crossmember Sub-Assy, Frame, No.5
51206	51206-25101	Crossmember Sub-Assy, Frame, No.6
51206	51206-25111	Crossmember Sub-Assy, Frame, No.6
51207	51207-25050	Crossmember Sub-Assy, Frame, No.7
51401	51401-25151	Bracket Sub-Assy, Engine Front Mounting, Rh
51701	51701-25051	Bracket Sub-Assy, Cab Mounting, No.1 Rh
51702	51702-25011	Bracket Sub-Assy, Cab Mounting, No.1 Lh
51703	51703-25101	Bracket Sub-Assy, Cab Mounting, No.2, Rh
51731	51705-25031	Bracket, Cab Rear Mounting, Rh
51732	51706-25021	Bracket, Cab Rear Mounting, Lh
51741	51741-25040	Bracket, Rear Body Mounting, No.1
51744	51744-25020	Bracket, Rear Body Mounting, No.4
9011910531	90119-10531	BOLT WWASHER
9161961228	91619-61228	New Genuine Part

OEM	Part name	Category
51002-25752	Frame Sub-Assy	Frame ([05.1995 - ] (9505- ))
51202-25131	Crossmember Sub-Assy, Frame, No.2	Frame ([05.1995 - ] (9505- ))
51203-25111	Crossmember Sub-Assy, Frame, No.3	Frame ([05.1995 - ] (9505- ))
51204-25061	Crossmember Sub-Assy, Frame, No.4	Frame ([05.1995 - ] (9505- ))
51205-25051	Crossmember Sub-Assy, Frame, No.5	Frame ([05.1995 - ] (9505- ))
51206-25101	Crossmember Sub-Assy, Frame, No.6	Frame ([05.1995 - ] (9505- ))
51206-25111	Crossmember Sub-Assy, Frame, No.6	Frame ([05.1995 - ] (9505- ))
51207-25050	Crossmember Sub-Assy, Frame, No.7	Frame ([05.1995 - ] (9505- ))
51211-25091	Crossmember Sub-Assy, Frame, Front	Frame ([05.1995 - ] (9505- ))
51401-25151	Bracket Sub-Assy, Engine Front Mounting, Rh	Frame ([05.1995 - ] (9505- ))
51701-25051	Bracket Sub-Assy, Cab Mounting, No.1 Rh	Frame ([05.1995 - ] (9505- ))
51702-25011	Bracket Sub-Assy, Cab Mounting, No.1 Lh	Frame ([05.1995 - ] (9505- ))
51703-25101	Bracket Sub-Assy, Cab Mounting, No.2, Rh	Frame ([05.1995 - ] (9505- ))
51705-25031	Bracket, Cab Rear Mounting, Rh	Frame ([05.1995 - ] (9505- ))
51706-25021	Bracket, Cab Rear Mounting, Lh	Frame ([05.1995 - ] (9505- ))
51741-25040	Bracket, Rear Body Mounting, No.1	Frame ([05.1995 - ] (9505- ))
51744-25020	Bracket, Rear Body Mounting, No.4	Frame ([05.1995 - ] (9505- ))
90119-10531	BOLT WWASHER	Frame ([05.1995 - ] (9505- ))
91619-61228	New Genuine Part	Frame ([05.1995 - ] (9505- ))

Source: Public OEM parts-catalog data
Variants: 2 / 39
Category: 162
Collected: 2026-08-03
