LY21

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1983 · 3,222 parts · 147 categories

← Back to categories

3,222 items

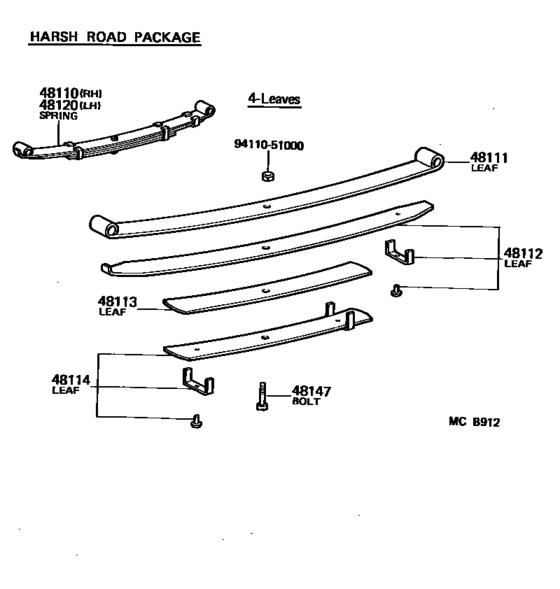

Front Spring & Shock Absorber ([08.1984 - ] (8408- )) 10

#	OEM	Part name
48110	48110-25260	Spring Assy, Front, Rh
48111	48111-25210	Leaf, Front Spring, No.1
48112	48102-25210	Leaf, Front Spring, No.2
48113	48113-25210	Leaf, Front Spring, No.3
48113	48113-25200	Leaf, Front Spring, No.3
48114	48114-25210	Leaf, Front Spring, No.4
48114	48114-25200	Leaf, Front Spring, No.4
48120	48110-25210	Spring Assy, Front, Lh
48147	48147-36051	Bolt, Front Spring, Center
9411051000	94110-51000	Nut(For Steering Center Arm)

OEM	Part name	Category
48102-25210	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([08.1984 - ] (8408- ))
48110-25210	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([08.1984 - ] (8408- ))
48110-25260	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([08.1984 - ] (8408- ))
48111-25210	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([08.1984 - ] (8408- ))
48113-25200	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([08.1984 - ] (8408- ))
48113-25210	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([08.1984 - ] (8408- ))
48114-25200	Leaf, Front Spring, No.4	Front Spring & Shock Absorber ([08.1984 - ] (8408- ))
48114-25210	Leaf, Front Spring, No.4	Front Spring & Shock Absorber ([08.1984 - ] (8408- ))
48147-36051	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([08.1984 - ] (8408- ))
94110-51000	Nut(For Steering Center Arm)	Front Spring & Shock Absorber ([08.1984 - ] (8408- ))
