LY21

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1983 · 3,222 parts · 147 categories

3,222 items

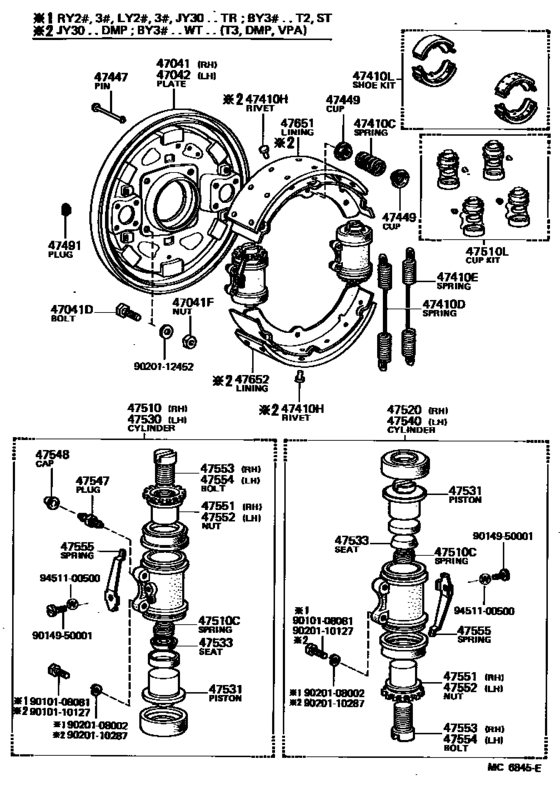

Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- )) 39

#	OEM	Part name
47041	47041-25030	Plate Sub-Assy, Brake Backing, Front Rh
47041	90101-12021	Bolt(For Backing Plate To Steering Knuckle Setting)
47041	90101-12175	Bolt(For Backing Plate To Rear Axle Housing Setting)
47041	94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)
47042	47042-25020	Plate Sub-Assy, Brake Backing, Front Lh
47410	90501-20756	Spring(For Front Brake Shoe Hold Down)
47410	90506-26009	Spring, Tension(For Front Brake Shoe Return)
47410	04494-25020	Shoe Kit, Rear Brake
47410	04494-25060	Shoe Kit, Rear Brake - FRONT BRAKE
47410	04496-25020	Shoe Kit, Rear Brake
47447	47447-20010	Pin, Shoe Hold Down Spring(For Front Brake)
47449	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47491	47491-36010	Plug, Hole(For Front Brake)
47491	47491-36020	Plug, Hole(For Rear Brake)
47510	47510-29185	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	90501-10759	Spring, Compression(For Front Wheel Brake Cylinder)
47510	04905-25020	Cup Kit, Front Wheel Cylinder
47520	47520-29115	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47520	47520-25030	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47530	47530-29185	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47531	47531-60010	Piston, Wheel Brake Cylinder(For Front Brake) - WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47533	47533-25010	Seat, Wheel Cylinder Piston Spring(For Front Brake)
47540	47540-29115	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47540	47540-25030	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47547	47547-12010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47551	47551-25050	Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
47552	47552-25050	Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
47553	47553-36021	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47554	47554-36021	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47555	47555-25010	Spring, Adjuster Lock(For Front Brake)
9010108081	90101-08081	Bolt(For Front Wheel Cylinder)
9010110127	90101-10127	Bolt(For Front Wheel Cylinder)
9014950001	90149-50001	New Genuine Part
9020108002	90201-08002	Washer(For Front Wheel Cylinder)
9020110127	90201-10127	Washer, No.2 (For Center Support Bearing)
9020110287	90201-10287	Washer(For Front Wheel Cylinder)
9020112452	90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)
9451100500	94511-00500	Washer, Cover Set, No.2

OEM	Part name	Category
04494-25020	Shoe Kit, Rear Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
04494-25060	Shoe Kit, Rear Brake - FRONT BRAKE	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
04496-25020	Shoe Kit, Rear Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
04905-25020	Cup Kit, Front Wheel Cylinder	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
31478-30010	Bleeder Plug Cap	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47041-25030	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47042-25020	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47447-20010	Pin, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47491-36010	Plug, Hole(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47491-36020	Plug, Hole(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47510-29185	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47520-25030	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47520-29115	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47530-29185	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47531-60010	Piston, Wheel Brake Cylinder(For Front Brake) - WHEEL BRAKE CYLINDER(FOR REAR BRAKE)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47533-25010	Seat, Wheel Cylinder Piston Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47540-25030	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47540-29115	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47547-12010	Plug, Bleeder(For Release Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47551-25050	Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47552-25050	Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47553-36021	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47554-36021	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
47555-25010	Spring, Adjuster Lock(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90101-08081	Bolt(For Front Wheel Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90101-10127	Bolt(For Front Wheel Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90101-12021	Bolt(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90101-12175	Bolt(For Backing Plate To Rear Axle Housing Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90149-50001	New Genuine Part	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90201-08002	Washer(For Front Wheel Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90201-10127	Washer, No.2 (For Center Support Bearing)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90201-10287	Washer(For Front Wheel Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90501-10759	Spring, Compression(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90501-20756	Spring(For Front Brake Shoe Hold Down)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
90506-26009	Spring, Tension(For Front Brake Shoe Return)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
94511-00500	Washer, Cover Set, No.2	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1979 - ] (7903- ))
