LY21

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1983 · 3,222 parts · 147 categories

3,222 items

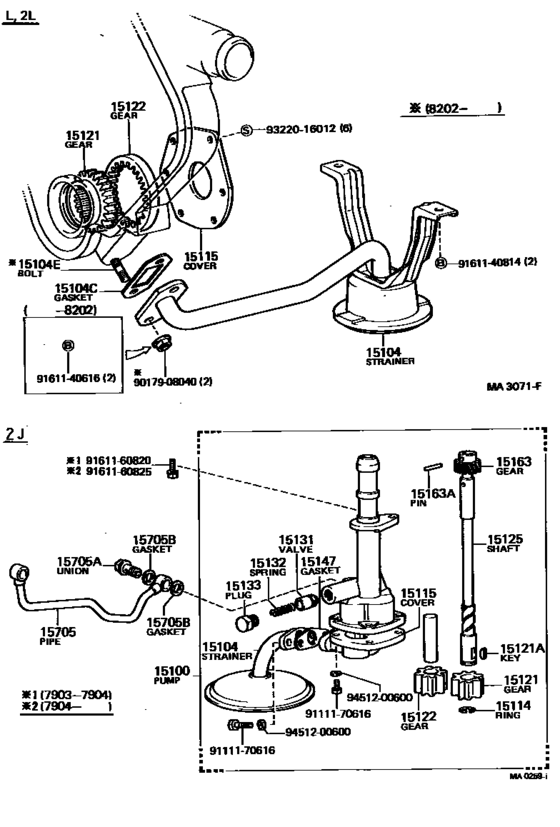

Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L) 20

#	OEM	Part name
15104	15104-54022	Strainer Sub-Assy, Oil
15104	15149-54011	Gasket(For Oil Strainer)
15104	15149-54030	Gasket(For Oil Strainer)
15104	92122-40816	Bolt, Stud(For Oil Strainer)
15115	15115-54011	Cover, Oil Pump
15115	15115-54012	Cover, Oil Pump
15121	15121-54010	Gear, Oil Pump Drive
15122	15122-54010	Gear, Oil Pump Driven
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9111170616	91111-70616	New Genuine Part
9161140616	91611-40616	Bolt, Hexagon(For Steering Column Bracket)
9161140616	91611-B0616	Bolt(For Transaxle Case Receiver)
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9322016012	93220-16012	SCREW
9451200600	94512-00600	Washer, Seal(For Head Cover Set)

OEM	Part name	Category
15104-54022	Strainer Sub-Assy, Oil	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
15115-54011	Cover, Oil Pump	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
15115-54012	Cover, Oil Pump	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
15121-54010	Gear, Oil Pump Drive	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
15122-54010	Gear, Oil Pump Driven	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
15149-54011	Gasket(For Oil Strainer)	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
15149-54030	Gasket(For Oil Strainer)	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
91111-70616	New Genuine Part	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
91611-40616	Bolt, Hexagon(For Steering Column Bracket)	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
91611-60814	Bolt	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
91611-60820	Bolt(For Transaxle & Engine Setting)	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
91611-B0616	Bolt(For Transaxle Case Receiver)	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
91611-G0820	Bolt	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
92122-40816	Bolt, Stud(For Oil Strainer)	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
93220-16012	SCREW	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
94512-00600	Washer, Seal(For Head Cover Set)	Engine Oil Pump ([03.1979 - ] MA3071F,MA0259I (7903- )L,2L)
