Search › Model › LY161

LY161

Toyota DYNA-150-TOYOACE-G15 · 1996 · 4,898 parts · 235 categories
LY161 ×

← Back to categories

4,898 items

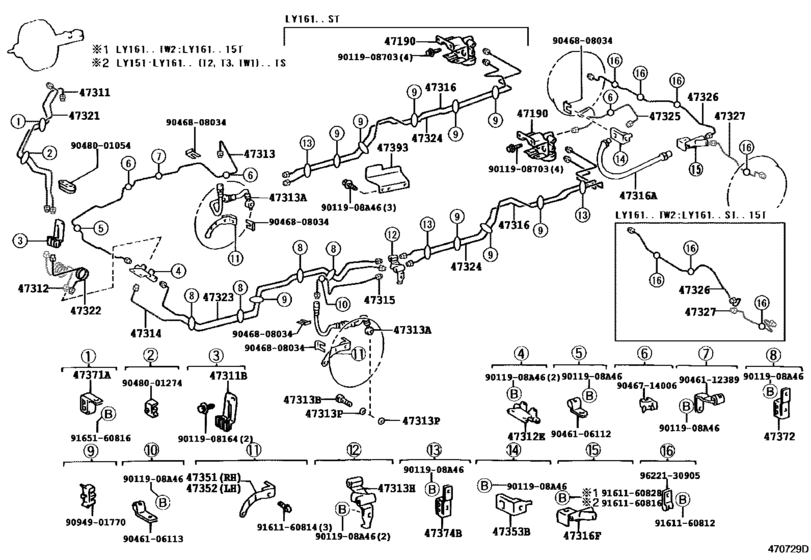

Brake Tube & Clamp ([10.1996 - 05.1999] (9610-9905)LY151,161) 56
#OEMPart name
47311 47311-25290 Tube, Front Brake, No.1
47311 90904-12044 Way, No.1(For Front Brake Tube)
47311 90904-12045 Way, No.1(For Front Brake Tube)
47312 47312-25170 Tube, Front Brake, No.2
47312 90413-10187 Way, No.1(For Front Brake Tube)
47313 47313-25140 Tube, Front Brake, No.3
47313 90947-02522 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90904-13023 Way, No.3(For Front Brake Tube)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47314 47314-25180 Tube, Front Brake, No.4
47315 47315-25090 Tube, Front Brake, No.5
47316 47316-25210 Tube, Front Brake, No.6
47316 90947-02621 Hose, Flexible(For Brake Tube)
47316 90413-10147 Way, 3(For Rear Brake Tube)
47316 47316-25180 Tube, Front Brake, No.6
47316 90413-10216 Way, 3(For Rear Brake Tube)
47321 47321-25150 Tube, Rear Brake, No.1
47322 47322-25150 Tube, Rear Brake, No.2
47323 47323-25140 Tube, Front Brake, No.6
47324 47324-25330 Tube, Rear Brake, No.4
47324 47324-25300 Tube, Rear Brake, No.4
47325 47325-25260 Tube, Rear Brake, No.5
47325 47325-26281 Tube, Rear Brake, No.5
47326 47326-25280 Tube, Rear Brake, No.6
47326 47326-26191 Tube, Rear Brake, No.6
47327 47327-25240 Tube, Rear Brake, No.7
47327 47327-26071 Tube, Rear Brake, No.7
47351 47351-26090 Bracket, Flexible Hose(For Front Rh)
47352 47352-26090 Bracket, Flexible Hose(For Front Lh)
47353 47353-25060 Bracket, Flexible Hose, No.3
47353 47353-26050 Bracket, Flexible Hose, No.3
47371 47373-25010 Clamp, Brake Tube, No.1
47372 47372-25010 Clamp, Brake Tube, No.1
47393 47393-25010 Insulator, Brake Tube Heat
9011908 90119-08A46 BOLT WWASHER
9011908164 90119-08164 Bolt
9011908164 90119-08802 BOLT WWASHER
9011908703 90119-08703 New Genuine Part
9046106112 90461-06112 Clamp, Brake Tube, No.6
9046106113 90461-06113 Clamp, Brake Tube, No.2
9046112389 90461-12389 New Genuine Part
9046714006 90467-14006 New Genuine Part
9046808034 90468-08034 CLIP
9048001054 90480-01054 Grommet(For Brake Tube)
9048001274 90480-01274 Grommet, No.2(For Front Brake Tube)
9094901770 90949-01770 New Genuine Part
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9161160814 91611-60814 Bolt
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9161160828 91611-60828 Bolt(For Clutch Release Cylinder Setting)
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9622130905 96221-30905 CLAMP
