Search › Model › LY132

LY132

Toyota DYNA-150-TOYOACE-G15 · 1999 · 4,182 parts · 205 categories

4,182 items

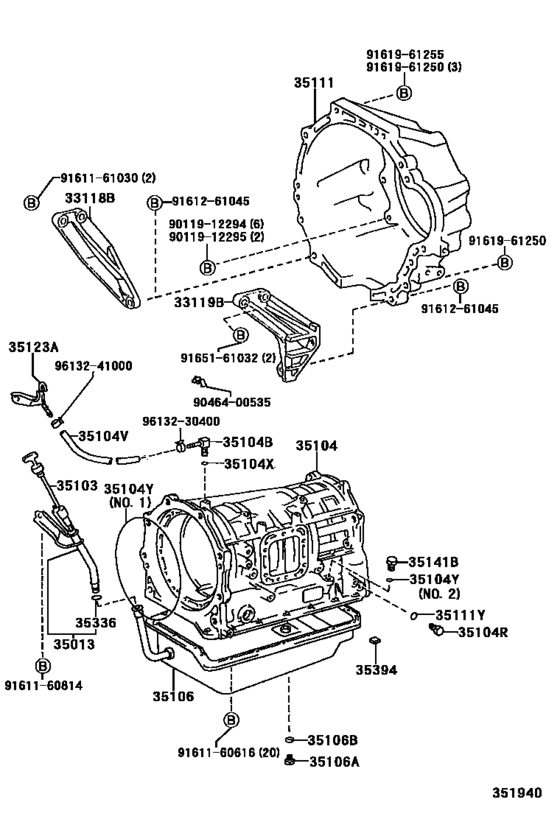

Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM) 35

#	OEM	Part name
33118	33118-25020	Plate, Stiffener, Rh(Mtm)
33119	33119-25020	Plate, Stiffener, Lh(Mtm)
35013	35013-25021	Tube Sub-Assy, Transmission Oil Filler
35103	35103-25021	Gage Sub-Assy, Transmission Oil Level
35104	35104-25020	Case Sub-Assy, Automatic Transmission
35104	90930-03094	Plug, Breather, No.1 (Atm)
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90445-11135	Hose (For Breather Plug)
35104	90301-06005	Ring, O (For Breather Plug)
35104	90301-10189	Ring, O(For Oil Cooler Tube Union)
35104	90301-99067	Ring, O (For Automatic Transmission Case)
35106	35106-25010	Pan Sub-Assy, Automatic Transmission Oil
35106	90341-18057	Drain Plug (with Magnet)
35106	12157-10010	Gasket (For Drain Plug)
35111	35111-25010	Housing, Automatic Transmission
35111	90301-06196	O Ring, Transaxle Case, No.1
35123	35123-25010	Skirt, Transmission Breather
35141	90341-13001	Plug, W/head Straight Screw, No.3(For Transaxle Hsg & Case)
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
9011912294	90119-12294	Bolt (For Transmission Housing & Case Setting)
9011912295	90119-12295	Bolt (For Transmission Housing & Case Setting)
9046400535	90464-00535	Clamp, Throttle Cable, No.1
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)
9161160814	91611-60814	Bolt
9161161030	91611-61030	Bolt (For Transmission Control Cable Bracket)
9161161030	91612-61030	Bolt (For Transmission Control Cable Bracket)
9161261045	91612-61045	Bolt(For Transaxle & Engine Setting)
9161961250	91619-61250	Bolt
9161961255	91619-61255	Bolt(For Transaxle & Engine Setting)
9165161032	91651-61032	BOLT
9613230400	96132-30400	Clip Or Clamp(For Ventilation Hose)
9613230400	96132-51000	Clip Or Clamp(For Ventilation Hose)
9613241000	96132-41000	Clip, No.1(For Idle-Up Hose)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
33118-25020	Plate, Stiffener, Rh(Mtm)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
33119-25020	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
35013-25021	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
35103-25021	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
35104-25020	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
35106-25010	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
35111-25010	Housing, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
35123-25010	Skirt, Transmission Breather	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90119-12294	Bolt (For Transmission Housing & Case Setting)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90119-12295	Bolt (For Transmission Housing & Case Setting)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90301-06005	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90301-99067	Ring, O (For Automatic Transmission Case)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90341-13001	Plug, W/head Straight Screw, No.3(For Transaxle Hsg & Case)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90341-18057	Drain Plug (with Magnet)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90445-11135	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90464-00535	Clamp, Throttle Cable, No.1	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
90930-03094	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
91611-60616	Bolt(For Transaxle Case Receiver)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
91611-60814	Bolt	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
91611-61030	Bolt (For Transmission Control Cable Bracket)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
91611-B0616	Bolt(For Transaxle Case Receiver)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
91612-61030	Bolt (For Transmission Control Cable Bracket)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
91612-61045	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
91619-61250	Bolt	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
91619-61255	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
91651-61032	BOLT	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
96132-41000	Clip, No.1(For Idle-Up Hose)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([05.1999 - ] A44DE (9905- )LY132,212..ATM)
